Create and use new hatch patterns

[wim (Wim Dekeyser)]

Hi Viktor -

@ice

There’s a very helpful little tool which seems to do the job.

See my post from November 2015 earlier in this thread…

Create and use new hatch patterns

Here you go Insulation-hatches.zip (3.3 KB) In the 01 version, I made line segments myself. In the 02 version, the DecimationTolerance in the MakeHatch plug-in was set to 0.5. Thanks, @SamPage!

@ice

You have to join his telegram channel and then download the HatchMaker plugin:

That’s a complete rip-off if they are not attributing this to Sam Page!
-wim

[ralph1 (Ralph)]

Since @SamPage’s helpful script stopped working with Rhino 7, a grasshopper approach for making hatches is here:

https://discourse.mcneel.com/t/interactive-hatch-maker-in-grasshopper-to-output-pat-file-insulation/159133/1

R

[brian (Brian Gillespie)]

RH-31342 is fixed in Rhino 8 Service Release 15

[TomasT]

Christmas arrived a little early this year! Thank you so much!

[scottd (Scott Davidson)]

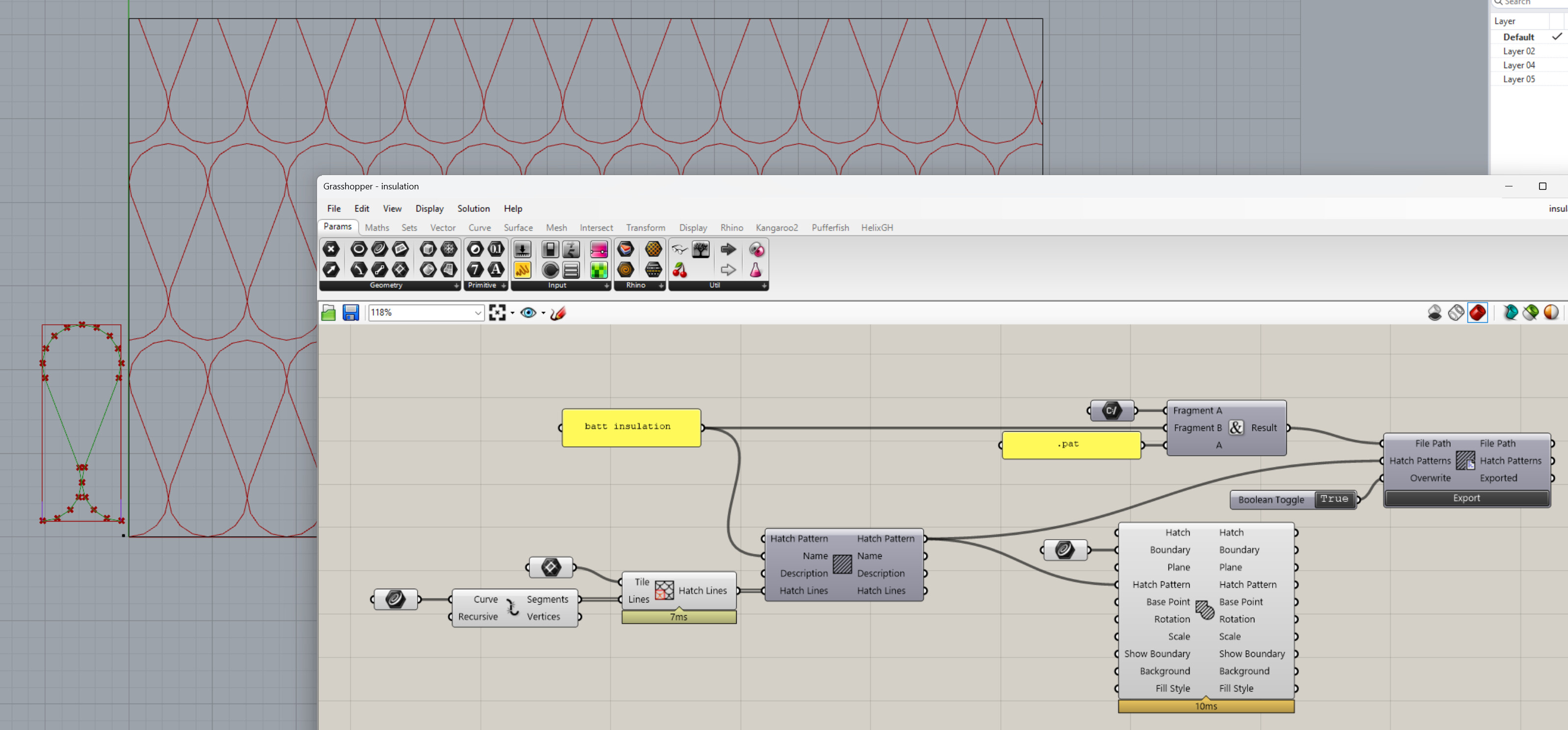

There are now a couple ways to create Hatches in Grasshopper.

Creating a set of lines (Start, Angle, Offset, Shift) can be done with Rhino 8. And the new export component:

[scottd (Scott Davidson)]

Rhino 9 we are experimenting with a control that allows for a tile and then create a pattern:

[scottd (Scott Davidson)]

We added the tile hatch pattern to the Rhino 9 WIP here so you can test it: New Component: Create Hatch patterns with Grasshopper in Rhino 9
