Un-smooth mesh

Jonish · November 28, 2016, 4:48pm

Hey guys,
This must be a very basic question:
I’m trying to create a low-poly tree, using ReduceMesh, however it stays smooth. How do I remove the smooth effect from the geometry?

Cheers.

Jarek · November 28, 2016, 4:52pm

Hi Jonish,

_Unweld 0 should do it.

–jarek

Jonish · November 28, 2016, 5:01pm

Thank you, that’s it.

Jonas

John_Brock · November 28, 2016, 5:05pm

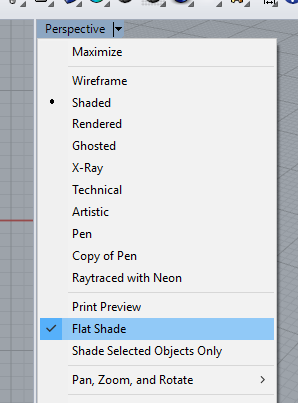

You can also tell the Rhino display pipeline to ignore the mesh facet weld angle by turning on “Flat shade”. It’s a display option or can be togged on/off by right clicking on the viewport name:

Jonish · November 28, 2016, 5:09pm

Thanks John, in this case my goal was to create an asset in this low-poly aesthetic, so unwelding is what I need. Changing the display would affect other stuff in a scene.

John_Brock · November 28, 2016, 5:11pm

That’s true.
I use Flat shade a lot when I’m slogging through mesh clean up so I can see what’s going on better. I also usually set an ugly backface color.

galinette · April 17, 2018, 9:14am

Hi,

I’m trying to do the same, but the result stays smoothed after Unweld 0, what did I do wrong?

Etienne

galinette · April 17, 2018, 9:19am

I did another test:

Create a box
Convert it to mesh and delete the original box polysurface
Weld it with 120° (>90°) angle tolerance : it becomes smoothed
Unweld it with 0° angle tolerance : it does not unsmooth

Is this a Rhino bug?

Helvetosaur · April 17, 2018, 9:36am

Seems to work here in both Rhino V5 and V6. Can you provide a sample file where it doesn’t work?

galinette · April 17, 2018, 12:44pm

Oops, my bad. I confirm it works

Etienne
