Create Rooms with RIR

[Neumiarzhytskaya_Ana (Neumiarzhytskaya, Anastasiya)]

I’ve looked through some topics here to see if the is a node to create rooms and room boundaries based on Rhino curves but it seems that it’s a future feature. Is there an ETA for it? In the meantime, I’d be happy to see if anyone have come up with workarounds.

[mucahitbgoker (Mucahit Bilal Goker)]

I created a Python component for adding room by point and level. also @msgambelluri shared a c# script in the below thread.
Add Room.ghuser (6.1 KB)

Create Room By Point in Grasshopper

Hey everyone, What i want to do is, I have a CAD file in which there are room tags as blocks. I am gonna use their locations to create Rooms in Revit and give its attributes as parameters. I have seen a similar topic in which someone asked whether if we are able to create rooms in grasshopper or not. There havent been any improvements since then. My question is when will we be able to create Rooms using Grasshopper?

[Neumiarzhytskaya_Ana (Neumiarzhytskaya, Anastasiya)]

This is great, thank you! Do you know if there is a solution to create room boundary lines?

[mucahitbgoker (Mucahit Bilal Goker)]

if you are talking about getting boundary lines of rooms, then @eirannejad have shared a Python component for that.

Rhino.Inside®.Revit

I also have a user object to get Room Boundary.

Floor Finishes by Room using Grasshopper inside Revit

[Neumiarzhytskaya_Ana (Neumiarzhytskaya, Anastasiya)]

I’m after a node that would generate room boundary lines based on Rhino curves. The node you sent earlier is helpful to place rooms but they are currently not bound. As a temporary solution I will create thin walls based on the given Rhino curves but it’s not ideal…

[Japhy]

Here’s a GHPython script to create New Room Boundary Lines from Rhino Curves.

CreateNewRoomBoundaries.gh (14.4 KB)

[mucahitbgoker (Mucahit Bilal Goker)]

Oh, ok. I also created a custom python component for room separation lines.
Add Room Separation Line_1.ghuser (4.4 KB)

[Japhy]

To answer your next question

I think this would be fine if you just feed the center points of the RhinoCurves to Add Room, i did it this way to ensure they were created.

You can create boundaries then add the room point, or add the rooms by point (with a error) then add the boundaries after.

CreateNewRoomBoundariesAndRooms.gh (17.1 KB)

[Neumiarzhytskaya_Ana (Neumiarzhytskaya, Anastasiya)]

Thank you both, worked like a charm.

[9pb]

Thank you, Japhy

[mucahitbgoker (Mucahit Bilal Goker)]

With latest daily build, Add Room and Add Room Separation components are added.

[thomas.lagarde]

Is add room fault tolerant ?

[Japhy]

There are a number of similar requests in this regard.

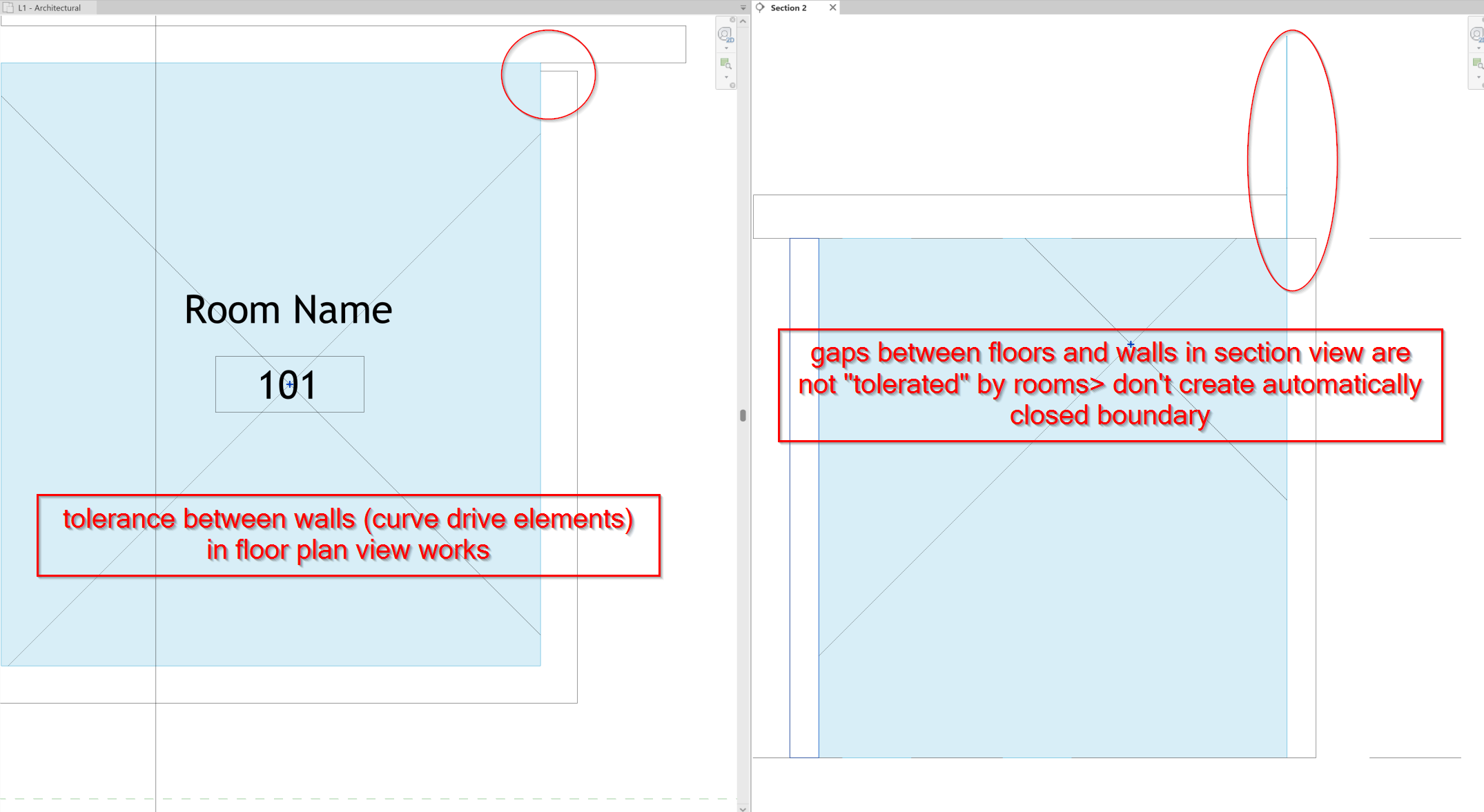

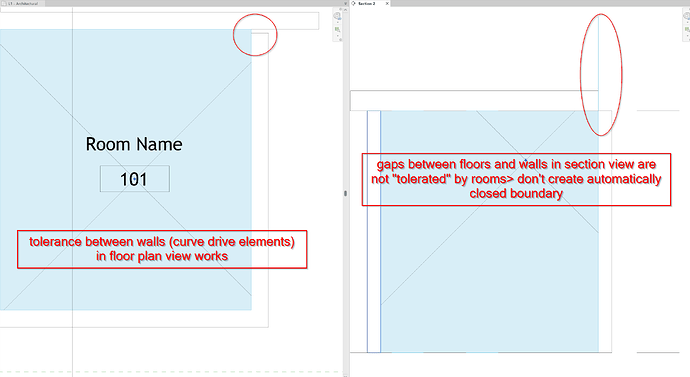

Room Boundaries should have a tolerance setting

https://www.autodesk.com/support/technical/article/caas/sfdcarticles/sfdcarticles/Tolerance-of-room-space-bounding-elements-at-floors-walls-in-Revit.html

[thomas.lagarde]

I think my problem is specific to the way my data has been organized, I will share something soon. As usual, super fast, thank you

[thomas.lagarde]

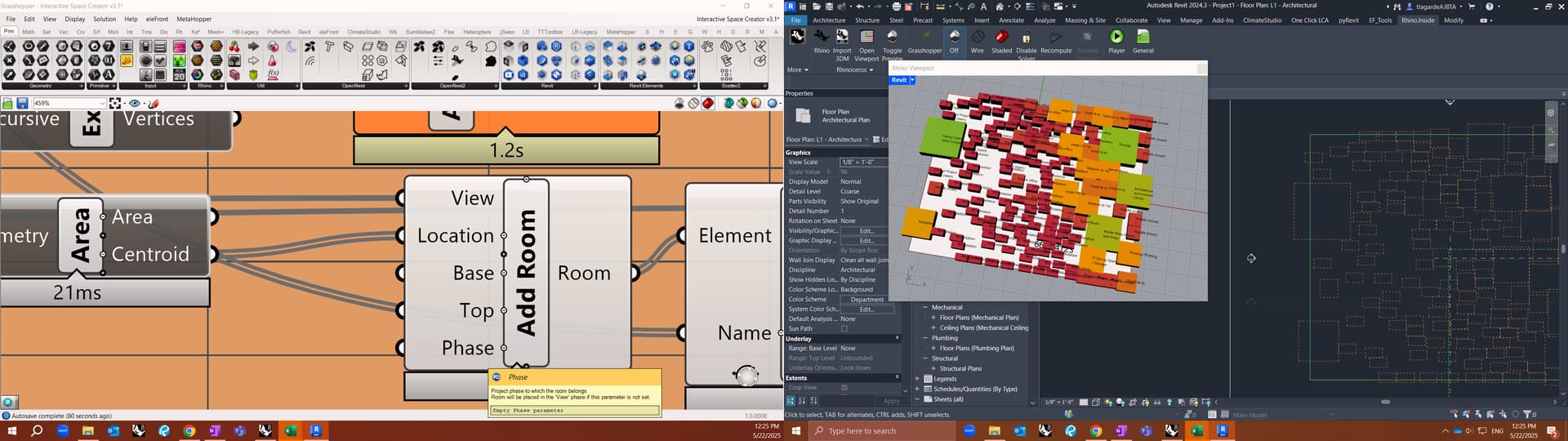

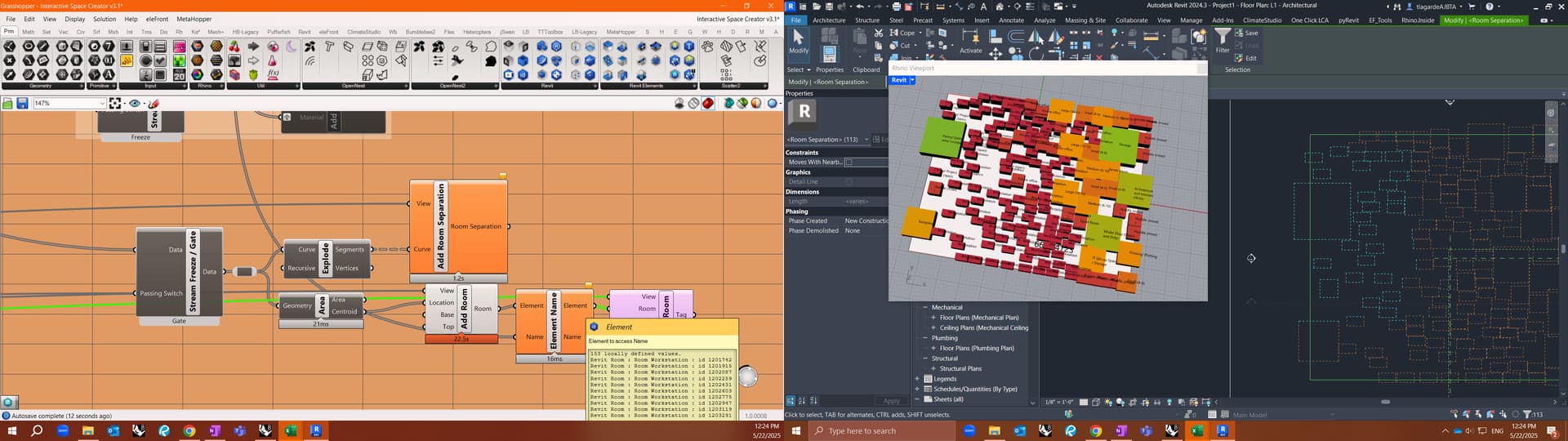

So, here’s what I have

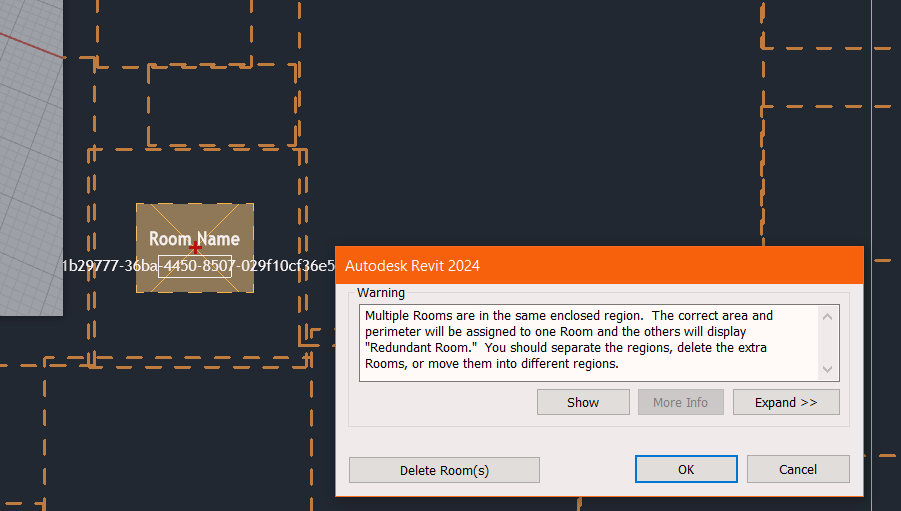

It seems the right are created, they just don’t show up in Revit, can’t explain that

[Japhy]

Are they going in on the correct Phase? (is the Phase visible in that view)

[thomas.lagarde]

I didn’t set up any phase, everything is by default, new project

[thomas.lagarde]

BTW, this input should be showed by default

[thomas.lagarde]

[Japhy]

Looking at the orange separation lines overlapping this is going to be a challenge
