Hi guys,

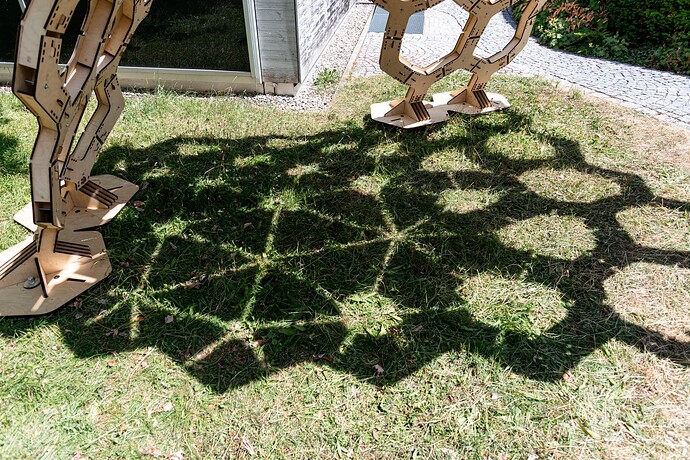

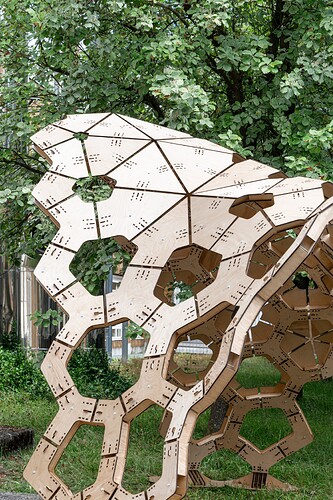

I’m happy to share some images and a video of a Pavilion, which we just completed a couple of months ago at the faculty of architecture at the University of Biberach. Everything, (of course) done with Rhino and Grasshopper – also the animation.

Carapacks_0001_0848 (Custom)
Carapacks_0001_0848 (Custom)1920×1281 500 KB

Carapacks_1000_0947 (Custom)
Carapacks_1000_0947 (Custom)1920×1281 273 KB

Carapacks_1002_0910 (Custom)
Carapacks_1002_0910 (Custom)1920×2877 795 KB

Carapacks_1003_0893 (Custom)
Carapacks_1003_0893 (Custom)1920×1281 271 KB

Carapacks_0002_0850 (Custom)
Carapacks_0002_0850 (Custom)1920×1259 497 KB

Carapacks_1005_0975 (Custom)
Carapacks_1005_0975 (Custom)1920×2877 389 KB

Carapacks_2000_0971 (Custom)
Carapacks_2000_0971 (Custom)1920×1281 127 KB

Carapacks_2001_0951 (Custom)
Carapacks_2001_0951 (Custom)1920×1281 120 KB

Carapacks_2005_0869 (Custom)
Carapacks_2005_0869 (Custom)1920×1281 483 KB

Carapacks_2003_0918 (Custom)
Carapacks_2003_0918 (Custom)1920×1281 118 KB

Carapacks_2006_0942 (Custom)
Carapacks_2006_0942 (Custom)1920×1281 569 KB

Carapacks_3001_0204 (Custom)
Carapacks_3001_0204 (Custom)1920×1439 657 KB

2

I love it when CAD data becomes tangible objects. :heart_eyes:

3

How you flatten those objects on plane to make some sort of cnc cutting. Do you use opennest or any other method, if possible please explain…

4

Great stuff! How long did it take to laser-cut the discreet components?

5

Impressive! :heart:
-Jakob

6

Thanks! The accumulated machine time was something like 18 hours.

7

Thanks so much!

8

As all the parts are free of curvature and torsion, there is no need to “flatten” the parts themselves – we could just orient them from their respective plane to global XY. From there, we used openNest to distribute them onto sheets for cutting.
