Render bug in RhinoPDF printer

Rhino Rhino for Windows
, , ,
1

When printing a layout viewport in Rendered display mode, parallel reflected projection, objects located at the world origin have a glare artifact only in pdfs printed via the RhinoPDF printer. This glare doesn’t show up in the viewport or using print-to-image-file or when using another pdf printer (bluebeam pdf). It is localized to the world origin.

Render Bug - Model.3dm (132.9 KB)

Render Bug - RhinoPDF Output

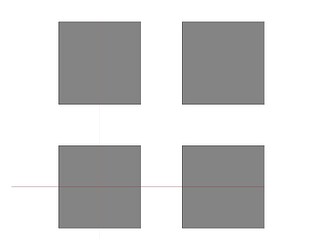

Render Bug - RhinoPDF Output1320×1020 23 KB

Render Bug - Bluebeam PDF Output
Render Bug - Bluebeam PDF Output1320×1020 20.3 KB

Render Bug - Print to Image Output
Render Bug - Print to Image Output3299×2550 78.7 KB

Rhino 8 SR19 2025-4-15 (Rhino 8, 8.19.25105.15001, Git hash:master @ d23526bd801a5638a914a9429fe88efcd4a87fe9)
License type: Commercial, build 2025-04-15
License details: LAN Zoo Network Node

Windows 11 (10.0.26100 SR0.0) or greater (Physical RAM: 64GB)
.NET 7.0.20

Computer platform: DESKTOP

Standard graphics configuration.
  Primary display and OpenGL: NVIDIA RTX 2000 Ada Generation (NVidia) Memory: 16GB, Driver date: 9-10-2024 (M-D-Y). OpenGL Ver: 4.6.0 NVIDIA 556.39
    > Accelerated graphics device with 4 adapter port(s)
        - Windows Main Display attached to adapter port #0
        - Secondary monitor attached to adapter port #1

Secondary graphics devices.
   Intel(R) UHD Graphics 770 (Intel) Memory: 2GB, Driver date: 9-13-2024 (M-D-Y).
    > Integrated graphics device with 4 adapter port(s)
        - There are no monitors attached to this device!

OpenGL Settings
  Safe mode: Off
  Use accelerated hardware modes: On
  GPU Tessellation is: On
  Redraw scene when viewports are exposed: On
  Graphics level being used: OpenGL 4.6 (primary GPU's maximum)

  Anti-alias mode: 4x
  Mip Map Filtering: Linear
  Anisotropic Filtering Mode: High

  Vendor Name: NVIDIA Corporation
  Render version: 4.6
  Shading Language: 4.60 NVIDIA
  Driver Date: 9-10-2024
  Driver Version: 32.0.15.5639
  Maximum Texture size: 32768 x 32768
  Z-Buffer depth: 24 bits
  Maximum Viewport size: 32768 x 32768
  Total Video Memory: 16380 MB

Rhino plugins that do not ship with Rhino

Rhino plugins that ship with Rhino
  C:\Program Files\Rhino 8\Plug-ins\Commands.rhp	"Commands"	8.19.25105.15001
  C:\Program Files\Rhino 8\Plug-ins\WebBrowser.rhp	"WebBrowser"
  C:\Program Files\Rhino 8\Plug-ins\rdk.rhp	"Renderer Development Kit"
  C:\Program Files\Rhino 8\Plug-ins\RhinoScript.rhp	"RhinoScript"
  C:\Program Files\Rhino 8\Plug-ins\IdleProcessor.rhp	"IdleProcessor"
  C:\Program Files\Rhino 8\Plug-ins\RhinoRenderCycles.rhp	"Rhino Render"	8.19.25105.15001
  C:\Program Files\Rhino 8\Plug-ins\rdk_etoui.rhp	"RDK_EtoUI"	8.19.25105.15001
  C:\Program Files\Rhino 8\Plug-ins\NamedSnapshots.rhp	"Snapshots"
  C:\Program Files\Rhino 8\Plug-ins\MeshCommands.rhp	"MeshCommands"	8.19.25105.15001
  C:\Program Files\Rhino 8\Plug-ins\IronPython\RhinoDLR_Python.rhp	"IronPython"	8.19.25105.15001
  C:\Program Files\Rhino 8\Plug-ins\RhinoCycles.rhp	"RhinoCycles"	8.19.25105.15001
  C:\Program Files\Rhino 8\System\netcore\export_PDF.rhp	"PDF Export"	8.19.25105.15001
  C:\Program Files\Rhino 8\Plug-ins\Toolbars\Toolbars.rhp	"Toolbars"	8.19.25105.15001
  C:\Program Files\Rhino 8\Plug-ins\3dxrhino.rhp	"3Dconnexion 3D Mouse"
  C:\Program Files\Rhino 8\Plug-ins\Displacement.rhp	"Displacement"
  C:\Program Files\Rhino 8\Plug-ins\SectionTools.rhp	"SectionTools"
2

Not seeing this in a quick test of your file in a fairly similar environment. Rhino pdf / Bluebeam are printing the same.

Are there any custom settings in the Display Mode?

image3269×1210 440 KB

3

Rendered.ini (16.0 KB)
Here is my modified Rendered mode.

4

Can you try it with the default Rendered mode except with shadows turned off?

5

Not seeing the glare artifact printing the layout via RhinoPDF with your Rendered.ini & shadows turned off.

6

Alright, thanks for checking. Not sure what’s causing it, but I was able to work around it by turning shadows back on and setting shadow intensity to 0%.
