Need helps with bone structure/ minimal surface

Grasshopper
1

Hello!
I’m currently trying to achieve a structure like the image below.

I created by piping lines> Brep> Mesh Brep> WB Mesh Join n Weld> Wb’s Catmull-Clark Subdivision. However the mesh is very messy and dense and I’m sure this is not the correct way of creating a structure like this.

I did reference Entry Paradise Pavilion but I still can’t get get I want…

I’ve attached the curves of the structure in this post and I hope some kind grasshopper experts can help me with this. Thanks!

Bone%20Ref
Bone Ref.JPG609×845 28.1 KB

BoneStructure.3dm (54.8 KB)

2

Have a try dendro plugin.

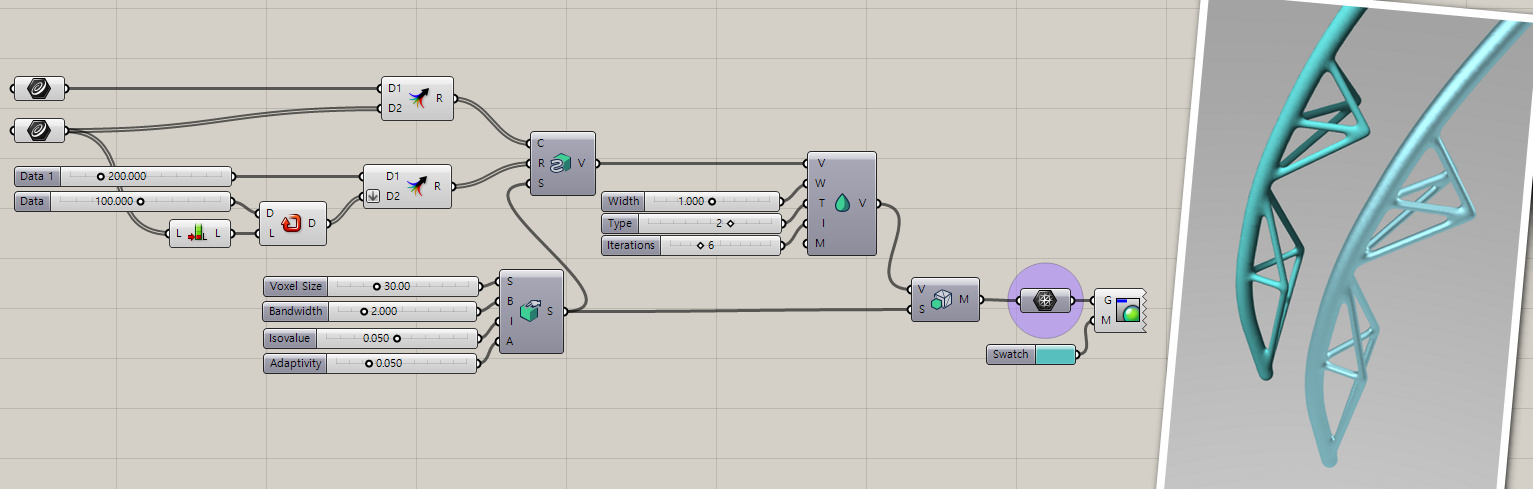

Canvas%20at%2019%3B40%3B02
Canvas at 19;40;02.jpg1533×489 151 KB
BoneStructure_re.gh (15.4 KB)

5 Likes
3

Yes! Thank you very much!!
