1

Hello,

How can I make this work?


image738×215 23.8 KB

I have the curves sorted in lists as shown and have to make this work for some 20 items per list.
I´m sure it´s rather simple but can´t wrap my head around it.

2

If all your surfaces are going to be built of fours edges, you have these two options:

  1. join, explode and dispatch for a Network Surface
  2. join, explode and use List Item for an Edge Surface

image1081×447 53.1 KB

four_curves_surface.gh (7.2 KB)

2 Likes
3

I have simplified my problem too much. Some of the shapes overlap with identical curves one on top of each other like this:

image821×291 9.67 KB

4

Are all curves planar and in the same plane?

image2002×671 114 KB

surface_duplicate_edge.gh (12.9 KB)

1 Like
5

Not at all, sorry I can´t share the company files. :confused: You can imagine something like 2 or 3 curved “ladders”. There are alvays 4 simple nonplanar curves divided as shown - two go into V and two go into U. I believe this is a tree management excersise which is something I suck at big time.

I can get individual “windows” this way:

image887×560 73.5 KB

I believe I need to branch the sets corectly to organise them into these “pairs”. Random combinations of grafts and flattens didn´t work (unexpectedly) so I´m reaching for help here.

6

Please provide a Rhino file with a few curves.

7

image968×687 94.2 KB

Please share the file with the problem you like to understand, not the original, but the recreated and simplified one.

2 Likes
8

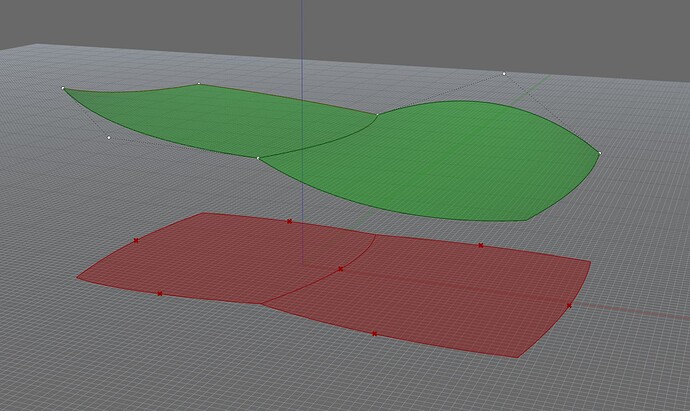

image2380×966 250 KB

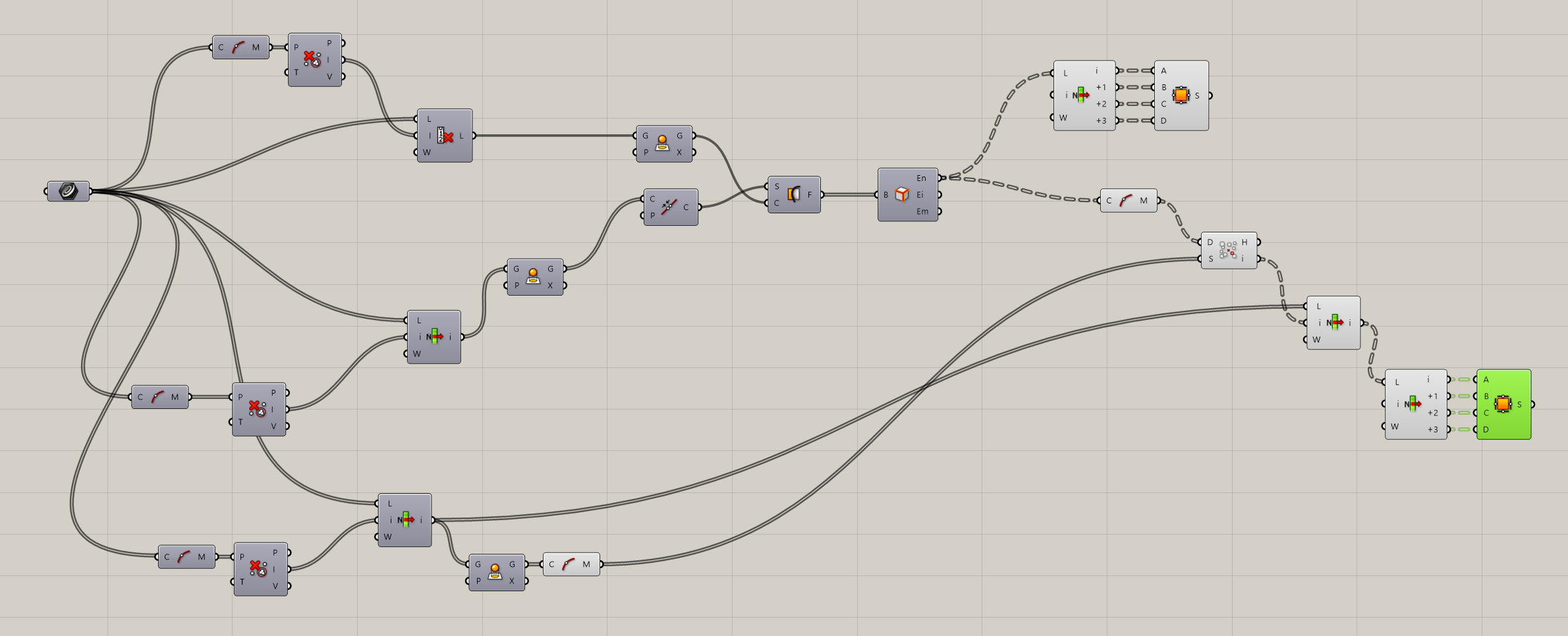

image1920×1144 231 KB

1 Like
9

This is embarrassing – I really did think this is a stupid simple problem so I didn´t include a properly made example file. I slept on it and came back thinking it obviously is a more complex problem based on the propoused solutions kindly provided by Martin S. I have actually prepared the proper sample. While doing so I figured out the solution …

exampleR7.3dm (63.6 KB)
exampleGH.gh (11.1 KB)

So I´m sharing it here for anyone as dull as me :slight_smile:
Thank you all and have a good day

10

I read this so often here. I would say most of the time a sample geometry is needed or at least helps the others. Now you just want us to do this- this seems to be wasting everybodies time.

  • You can tag people by typing @ like(@martinsiegrist) and than select the person you want to. So they get a proper notice, that you mentioned them.
  • You can internalize Rhino geomertry in your GH file
1 Like
