Display Mode - Technical - Text Mask not getting printed

Rhino Rhino for Windows
, , , ,
1

hi everyone,

when printing in display mode technical, text masks are getting lost:

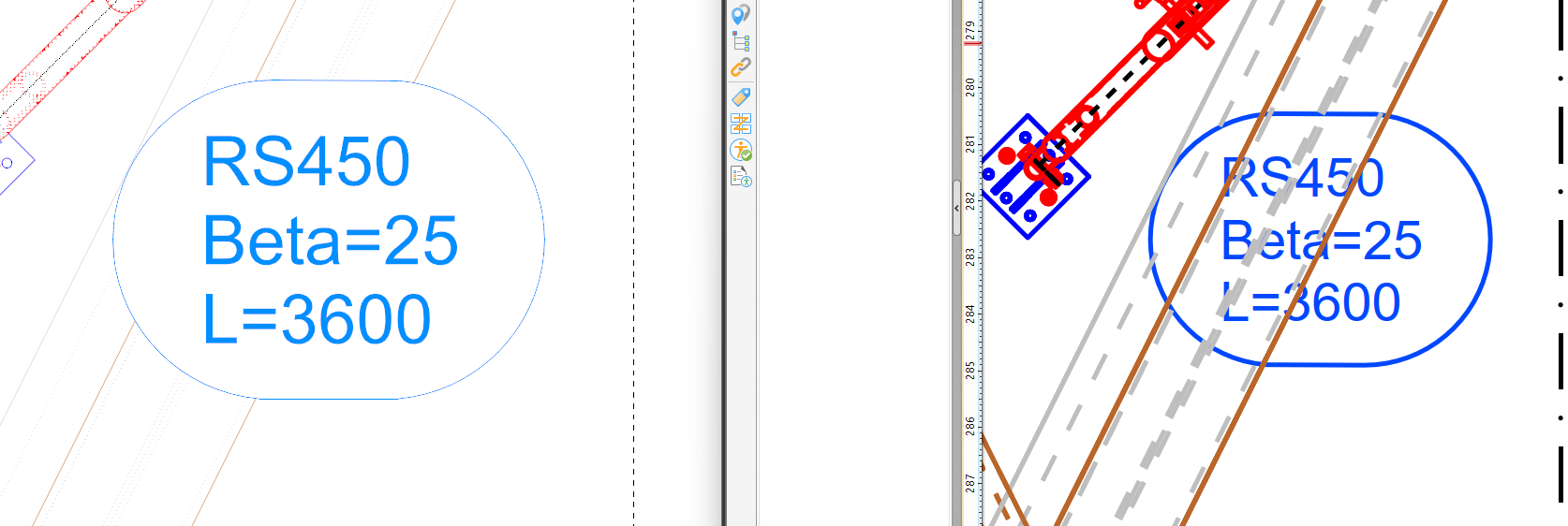

image1674Ă—562 85.7 KB

System Info:

Rhino 8 SR21 2025-6-25 (Rhino 8, 8.21.25176.19001, Git hash:master @ 34f5e5d0497bbd69d6c0cbbc6cfa5bd011fa0cac)
License type: Commercial, build 2025-06-25
License details: LAN Zoo Network Node

Windows 11 (10.0.26100 SR0.0) or greater (Physical RAM: 64GB)
.NET Framework 4.8.9300.0

Computer platform: LAPTOP - Plugged in [96% battery remaining]

Non-hybrid graphics configuration.
Primary display and OpenGL: NVIDIA RTX 3500 Ada Generation Laptop GPU (NVidia) Memory: 12GB, Driver date: 8-31-2024 (M-D-Y). OpenGL Ver: 4.6.0 NVIDIA 538.92
> Integrated accelerated graphics device with 4 adapter port(s)
- Windows Main Display is laptop’s integrated screen or built-in port
- Secondary monitor attached to adapter port #1
- Secondary monitor attached to adapter port #2
Primary OpenGL: NVIDIA RTX 3500 Ada Generation Laptop GPU (NVidia) Memory: 12GB, Driver date: 8-31-2024 (M-D-Y). OpenGL Ver: 4.6.0 NVIDIA 538.92
> Integrated accelerated graphics device with 4 adapter port(s)
- Windows Main Display is laptop’s integrated screen or built-in port
- Secondary monitor attached to adapter port #1
- Secondary monitor attached to adapter port #2

Secondary graphics devices.
Intel(R) UHD Graphics (Intel) Memory: 2GB, Driver date: 4-2-2025 (M-D-Y).
> Integrated graphics device with 4 adapter port(s)
- There are no monitors attached to this device. Laptop lid is probably closed

OpenGL Settings
Safe mode: Off
Use accelerated hardware modes: On
GPU Tessellation is: On
Redraw scene when viewports are exposed: On
Graphics level being used: OpenGL 4.6 (primary GPU’s maximum)

Anti-alias mode: 8x
Mip Map Filtering: Linear
Anisotropic Filtering Mode: High

Vendor Name: NVIDIA Corporation
Render version: 4.6
Shading Language: 4.60 NVIDIA
Driver Date: 8-31-2024
Driver Version: 31.0.15.3892
Maximum Texture size: 32768 x 32768
Z-Buffer depth: 24 bits
Maximum Viewport size: 32768 x 32768
Total Video Memory: 12282 MB

Rhino plugins that do not ship with Rhino
C:\Users\WriDk\RhinoPlugIn\HessTools_WriDk_Net48\HessTools_WriDk_Net48.rhp “HessTools” 1.0.0.0

Rhino plugins that ship with Rhino
C:\Program Files\Rhino 8\Plug-ins\SolidTools.rhp “SolidTools”
C:\Program Files\Rhino 8\Plug-ins\Commands.rhp “Commands” 8.21.25176.19001
C:\Program Files\Rhino 8\Plug-ins\WebBrowser.rhp “WebBrowser”
C:\Program Files\Rhino 8\Plug-ins\rdk.rhp “Renderer Development Kit”
C:\Program Files\Rhino 8\Plug-ins\RhinoScript.rhp “RhinoScript”
C:\Program Files\Rhino 8\Plug-ins\RhinoLabsTools.rhp “Rhino Labs Tools”
C:\Program Files\Rhino 8\Plug-ins\IdleProcessor.rhp “IdleProcessor”
C:\Program Files\Rhino 8\Plug-ins\RhinoRenderCycles.rhp “Rhino Render” 8.21.25176.19001
C:\Program Files\Rhino 8\Plug-ins\rdk_etoui.rhp “RDK_EtoUI” 8.21.25176.19001
C:\Program Files\Rhino 8\Plug-ins\NamedSnapshots.rhp “Snapshots”
C:\Program Files\Rhino 8\Plug-ins\MeshCommands.rhp “MeshCommands” 8.21.25176.19001
C:\Program Files\Rhino 8\Plug-ins\IronPython\RhinoDLR_Python.rhp “IronPython” 8.21.25176.19001
C:\Program Files\Rhino 8\Plug-ins\RhinoCycles.rhp “RhinoCycles” 8.21.25176.19001
C:\Program Files\Rhino 8\Plug-ins\Grasshopper\GrasshopperPlugin.rhp “Grasshopper” 8.21.25176.19001
C:\Program Files\Rhino 8\Plug-ins\export_PDF.rhp “PDF Export” 8.21.25176.19001
C:\Program Files\Rhino 8\Plug-ins\Toolbars\Toolbars.rhp “Toolbars” 8.21.25176.19001
C:\Program Files\Rhino 8\Plug-ins\3dxrhino.rhp “3Dconnexion 3D Mouse”
C:\Program Files\Rhino 8\Plug-ins\BlockEdit.rhp “BlockEdit” 8.21.25176.19001
C:\Program Files\Rhino 8\Plug-ins\Displacement.rhp “Displacement”
C:\Program Files\Rhino 8\Plug-ins\Calc.rhp “Calc”
C:\Program Files\Rhino 8\Plug-ins\SectionTools.rhp “SectionTools”

2

Hi @Dominik_Wrigley-Simo,
I can see that it is printing with Raster but not Vector.
I logged RH-88317/Text-Mask-Not-Masking-in-Vector-Output.
We will let you know here when there is a fix.

Also in reviewing your SystemInfo, we see your graphics driver is almost a year old:
Driver date: 8-31-2024 (M-D-Y). OpenGL Ver: 4.6.0 NVIDIA 538.92
Please get that updated to the latest nvidia driver when you have a chance.

Thank you for letting us know.
Sincerely,
Mary Ann Fugier

3

Thanks for looking into it @mary

And thanks for pointing to the driver :smiley:

1 Like
4

Great to hear, @Dominik_Wrigley-Simo.
You can use Raster output until the Vector issue is fixed

We will let you know here when there is a fix.
The updated driver will not solve this issue. It is just a good time to remind you to upgrade.

Thanks again.
Mary Ann Fugier
