2D skeletonization

Hi,

I would like to ask about 2D skeletonization.
I know this issue was addressed in quite a lot of threads by @laurent_delrieu and @DanielPiker.

The issue:
I have quite standard cases of 2D outlines resulting in forks and beams, but during the pruning process I most often have some little branches left. So it is not clear how many pruning steps are needed or whether the result would be good. More simply, it is difficult to have an error-less process when i.e. a beam would result in 1 central curve, or fork - 3 central curves. Smoothing of polylines does not help much either.

For now I was doing mesh triangulation from closed polyline, and extracting skeleton based on mesh face adjacency.

I attached the set of 2D curves I have in Rhino file.

I also tried Capybara plugin on 3D closed meshes, but the CGAL wrapper does not work on some computers, so I would like to stay with 2D cases.

Curves.3dm (153.7 KB)

What means that for you here? How do you measure the error?

For me those little branches marked in red arrow, is an “error”.

This paper describes one possible approach

You need an error function that works for any arbitrary skeleton. This means that you must take into account general aspects, such as scale restrictions, length or angle thresholds, deviations, etc., that fit for your intended use. I don’t think there is a general error function (at least one parameter-free), I think you should define it yourself or change to a better method to extract the medial axis.

My point, stated differently, is that you have so many factors to play with that you need to restrict the problem as much as possible and a good way is to adapt it to your particular problem (your scale, what you expect… all the parameters adapted to your model).

However, I find it strange that simplifying the curve does not help. I don’t mean using the simplify curve component, but a custom simplify method that fits the criteria you need, like preserving the corners for example.

It seems Zhand Suen method is much more stable than mesh or voronoi methods.
Wondering if this is possible to do in 3D with voxels:


Zhang-Suen.gh (1.3 MB)

1 Like

It is more stable but you need to convert to pixels/voxels , solve, and then convert back the points into curves. Even this last step alone is not easy.

Anyway.
Here: https://rosettacode.org/wiki/Zhang-Suen_thinning_algorithm it says that the method have a “circular” check on variation of neighbor values …
The neighbors of a voxel would be other 26 voxels, a 3x3x3 cube. But the cube vertexes have only 3 connections, leaving uneven amount of circular check or using some voxel value twice.
Or you can just do the circular check on the 3 planes having the starting voxel as center…
Computation time will increase by a scary amount.

Do you actually need it?

2 Likes

Thanks @maje90, on 2D case it is rather slow, I will not try the 3D one as you suggest.

For creating a curve, I might try to create a graph and then find connected-components, but I am not sure if that even works. Do you have any suggestions regarding conversion from pixels to curves?


Zhang-Suen_re.gh (1.3 MB)

Code is not really elegant … and not tested much…

1 Like

Maybe Point Groups or Proximity 2D help

Zhang-Suen_1.gh (6.6 KB)

1 Like

Thanks @maje90 and @anon39580149,

It gave me a few ideas how to do this when iterating through pixel neighbours:
Webp.net-gifmaker (1) Webp.net-gifmaker (3)

PCA2.gh (624.9 KB)

2 Likes

An idea

If you can fill the original mesh with spheres and than connect all spheres centers

3 Likes

One common interpretation of the medial axis is actually “…the locus of the centres of maximal circles”. See for instance this paper by Pablo Miranda Carranza:

https://www.diva-portal.org/smash/get/diva2:679788/FULLTEXT01.pdf

Another approach is using Voronoi discretisation and post-processing this, as described here:

http://www.labsimurb.polimi.it/11EAEA/T03/paper/EAEA11_PAPER_T03_p419_DELEURAN.pdf

4 Likes

Any ideas what would be a logic behind circle/fitting?

Maybe circle packing?
Another idea using contours

PCA3.gh (622.2 KB)

1 Like

Thank you for the references, maybe you have a code to test? :slight_smile:

I wondering if this would work when outlines are very irregular? The prunning in that case often have lots of little branches. I am projecting 3d cloud to 2d, then applying 2d marching squares to get a mesh, from that I get the biggest outline for the skeleton.

I think the idea in the paper I linked above was to prune based on the angle between the 2 lines from the centre of the circle to the 2 closest points on the curve.


Any point which can have circle centred on it tangent to more than 1 point on the curve is part of the medial axis, but I think if the angle between these lines is small, it is more likely to be just a bump rather than what you want as a real branch

1 Like

Reducing small features (and/or smoothing out) of the input domain geometry is definitely a good idea to reduce the complexity of the medial axis. Or just having clean/minimal inputs in the first place, which is admittedly easier to ensure with e.g. floor-plans (which has been my main application of the medial axis).

I’m afraid the stuff I wrote is owned by my old employer. That said, I think the stuff Pablo did was made open source as I recall (as part if the EU project we both contributed to). Also, here’s the presentation for the paper I wrote that expands a bit on the modelling steps:

For one of my project I continue to work on Medial Axis. And for answering @ore

here is a component I will include in my plugin (partially free)

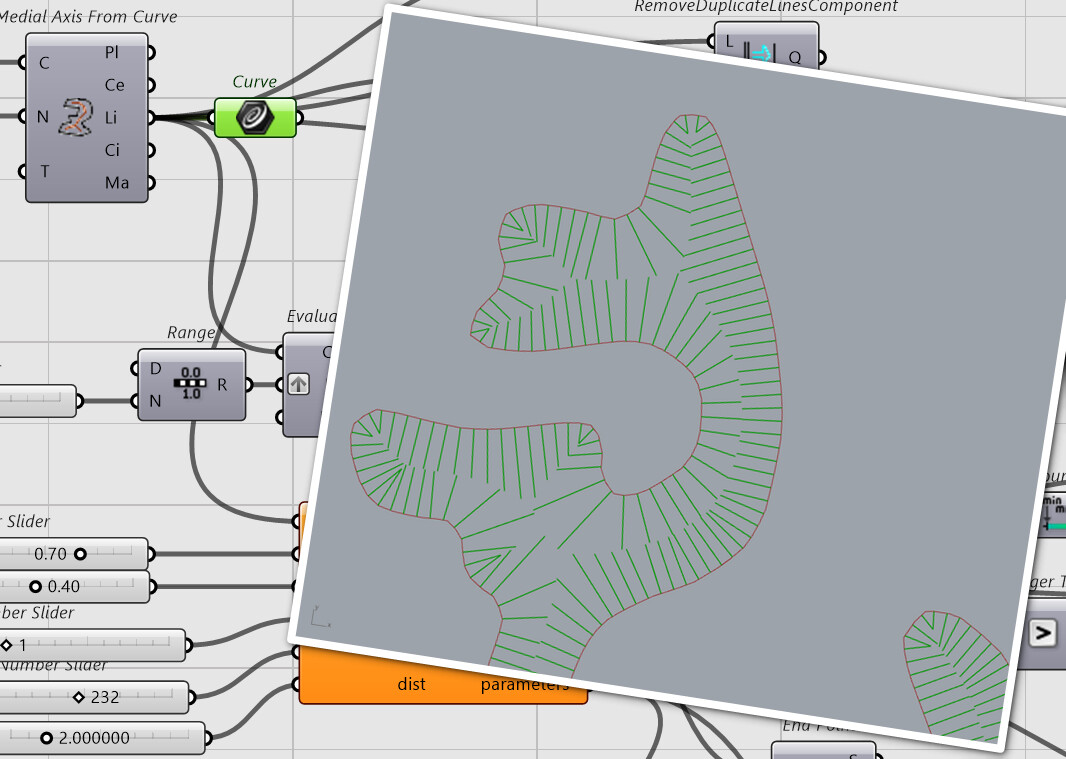

Medial Axis From Curve


Curve must be planar and closed. No hole at the moment
it will output the lines from the border

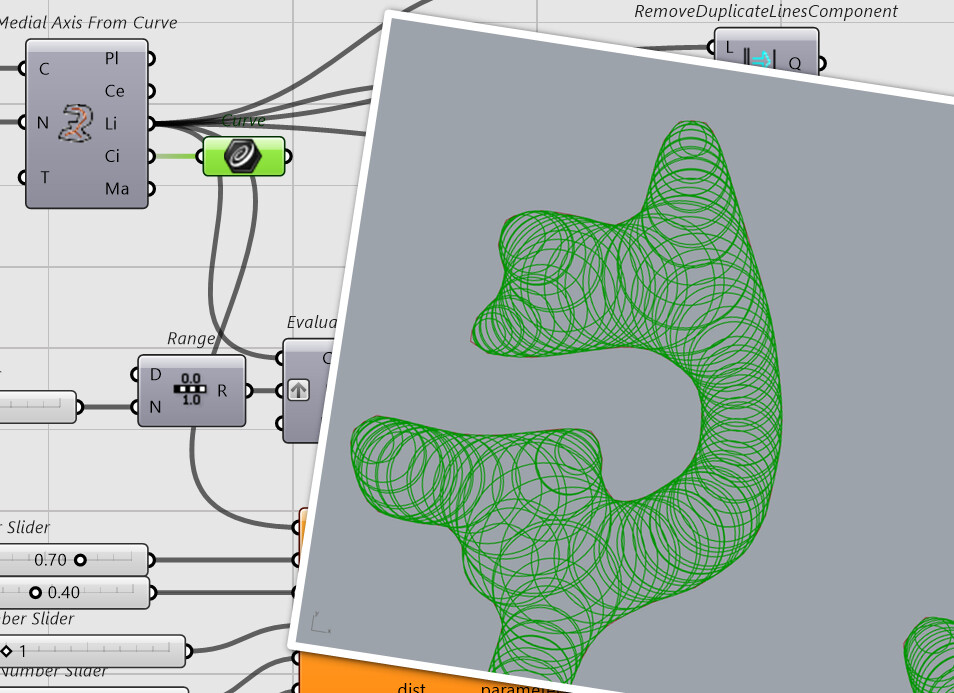

The circles that approximate the shape (useful to use cloud points algorithms)

And the medial axis with one polyline between each node

The lines are ordered so it will be possible to make sort tweens curve of one closed curve

I use that to put some circles inside the shape

In order to make a lamp. Cluster tool, rivet tool will be in the plugin.

9 Likes

I guess it is difficult to also support holes, but it would be fantastic, if it would!

Oliver
