Wish - Rhino copy/paste or export to CAD with object-level linetypescale

Serengeti (Rhino WIP)
1

It’s awesome to see objects can be copied/pasted directly between Rhino and CADs software. But the new feature of object-level linetype scale in Rhino 8 seems not be able to copy to the entity linetype in the model space in CAD by both copy/pasting and exporting methods.

I wish, in the near future, could copy with the object-level linetype scale written into the entity linetype in model space in CAD.

Thanks a lot!

2

Hi Weeken -

This won’t happen in the near future, but I’ve added the request to the list:
RH-72267 File IO: Include object-level linetype scale in clipboard information for AutoCAD
-wim

3

Can you please provide a model, the simpler the better (one object would be great), that has the linetype scale you speak of in the dwg file. For the moment I don’t know what to hook up but we have an autocad whiz here that will set me straight. Thanks.

Tim

4

@wim @tim Thank you so much for the quick feedback!

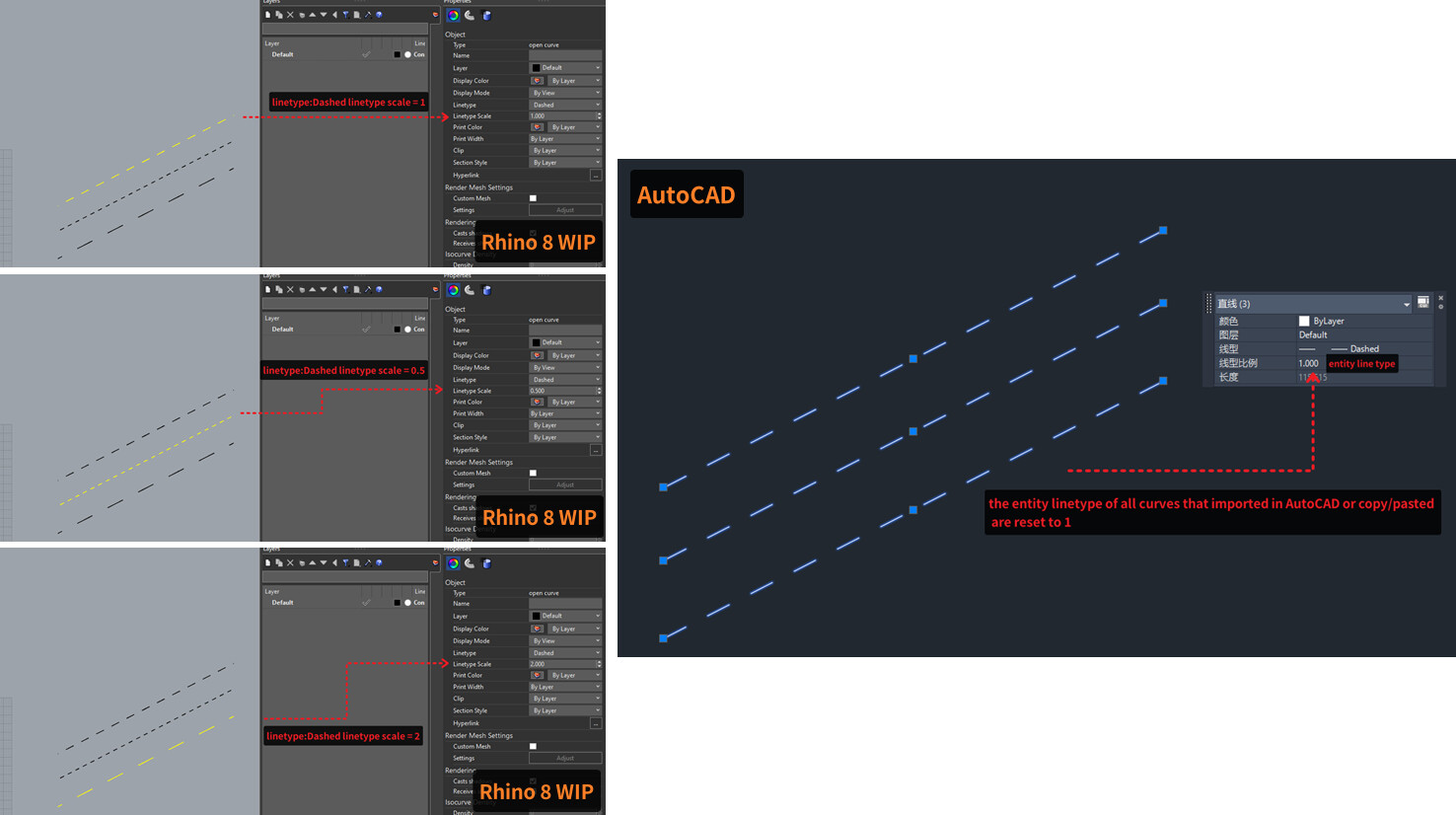

Please see the capture below:

image1476×826 146 KB

I will always get the curve object that the entity linetype scale,(same as object linetype scale in Rhino 8), are reset to 1 .
What I want is either way (exporting or copy/pasting) will bring the value object linetype scale into AutoCAD.

and also see the attached files below, thanks.
Object linetype scale-export to CAD.dwg (27.1 KB)
Object linetype scale.3dm (134.4 KB)
