Selecting "visible" points and not ones that are in shadow of geometry

Grasshopper
1

Hello
I have a geometry and a Point P
I have populated the Geometry with multiply points M

I would like to conect point P with all points M that are “vissible” to P

The best way i know to discribe this is a refrence:
In maya there is a way to select vertesies with “camera based selection” meaning you can only select vertesies seen by camera (If you have a sphere and do rectangular selection and CBS is on you only select vertesies on the side you can see)

does anybody know a way to do this in grasshopper :smiley:

i thought about connecting all M’s with P and then intersect all MP’s with the sphere and if there is a intersection i tried to cull them. but i am very new to GH and i didn’t manage :confused:

I would appriciate any help
thanks!

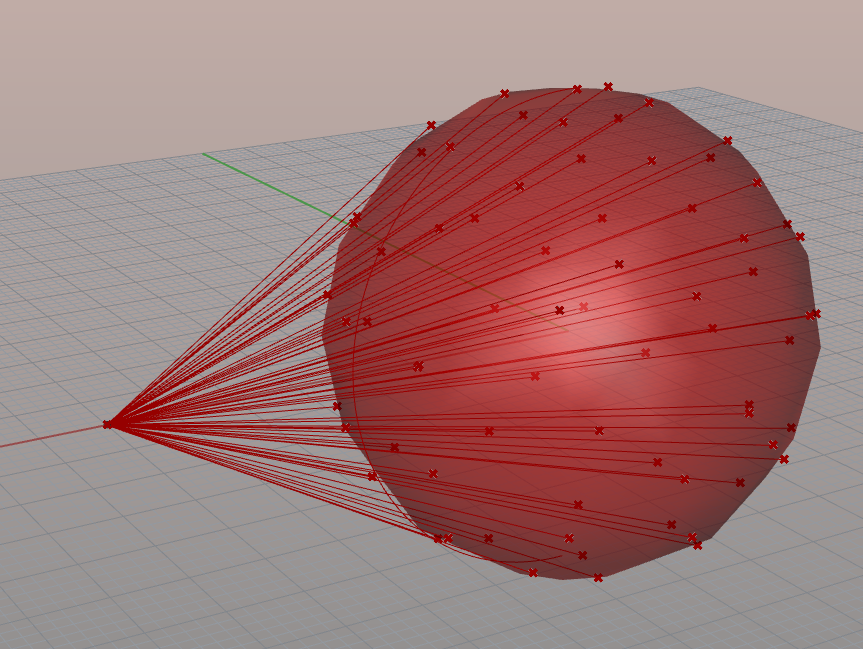

Unbenannt
Unbenannt.PNG863×649 302 KB

2

If you make two vectors:

  1. vector_cp: From the Sphere Center to point M
  2. vector_pm: From point P to point M

Then only the M points with a vector angle less than or equal 90 degrees are “visible” as seen from point P.

var angle = Vector3d.VectorAngle(vector_cp, vector_pm); // radians, convert to degree
if (angle <= 90) // degrees
{

}

The same test can be done with components of course.

// Rolf

3

Hi
thats a cool idea. would have never thought of that ^^ haha

but the way i understand it this would only work with a sphere right?
I would like to find a way that works with any geometry

thanks

4

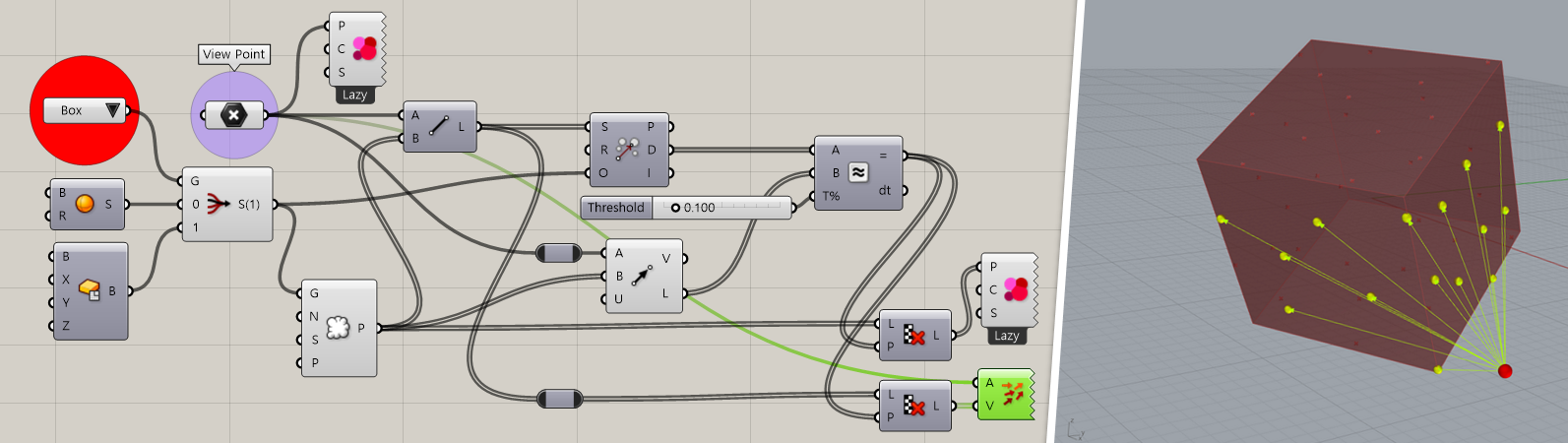

How about using IsoVist Ray and comparing two sets of vector length?

Canvas%20at%2000%3B31%3B36
Canvas at 00;31;36.png1593×450 292 KB
SelectingVisiblePt_re.gh (14.9 KB)

1 Like
5

Yes. :slight_smile:

// Rolf

6

Hi

yes this is exactly what i need. very cool!
thanks so much :smiley:
