Hello everyone
For the past two days, I have been trying to find a stable and simple solution to model the connection point between two profiles standing in space in an attractive way.

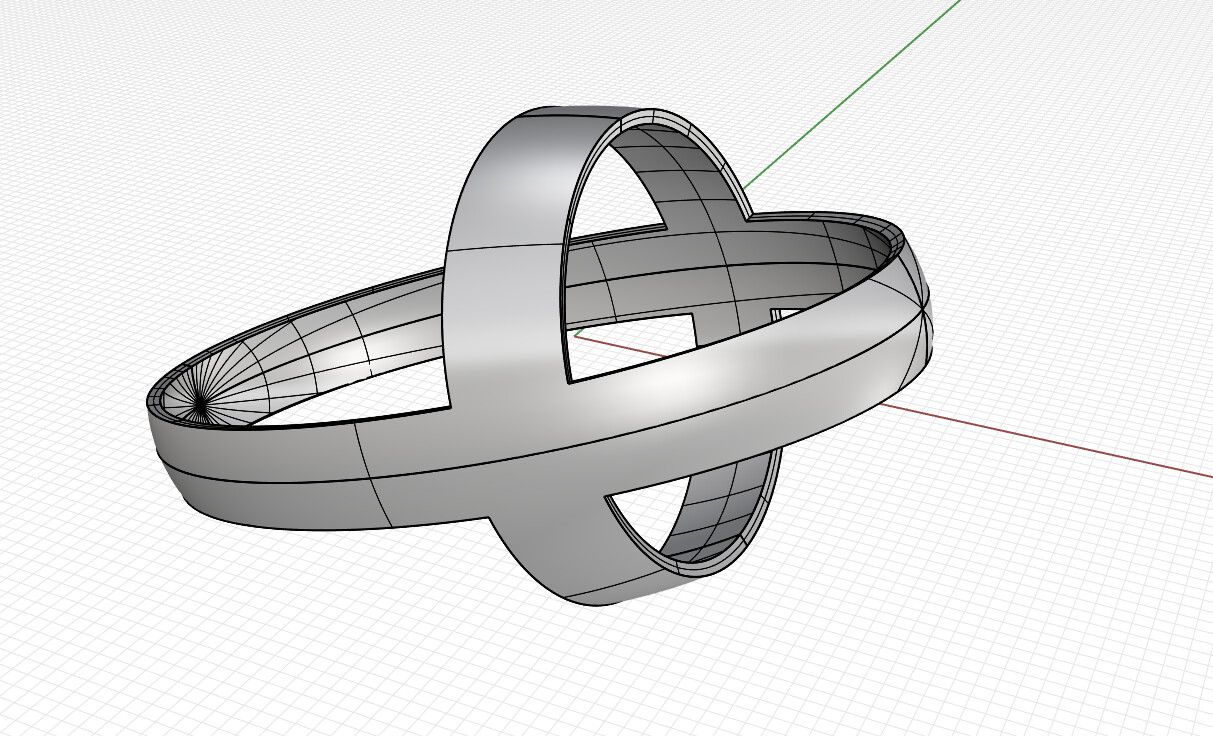

To illustrate this, I have created two ellipses here, but in principle it should also work with 3D splines as a path.
I would be very grateful if anyone could help me.
Many thanks and best regards
theoutside
(Kyle Houchens)
September 5, 2025, 4:35pm
3
can you sketch over this with your desired result?
many ways to solve this but they all depend on what you want as a result.
Graphix
(Graphix)
September 5, 2025, 4:41pm
5
Thanks for the quick reply
Unfortunately, it’s a bit difficult to draw, but I’ll try. Both rings should be bent so that they form a smooth common surface.
EDIT:
I tried to sketch it out
theoutside
(Kyle Houchens)
September 5, 2025, 4:57pm
6
one way to think about this,
make a solid shape, project curves onto it to make your outer surface, trim where appropriate,
then use solid offset to the inside at your preferred thickness.
Graphix
(Graphix)
September 5, 2025, 5:10pm
8
Thank you so much for your help,
the think is this works for some parts, but in some areas i want to have curved supportprofils where i cant cut linear.
EDIT:
I want to have a spline (red) which connects the yellow dots and ajust to the profiles it is “cutting“
theoutside
(Kyle Houchens)
September 5, 2025, 5:20pm
9
connecting the edges to a surface edge may work better using blend curves instead of trying to make a spline.
