Boundary Scaling Circle packing

Grasshopper Kangaroo
#1

Hello all

I am attempting to play with kangaroo for the first time and am a little confused. I am trying to create a circle packing similar to what is seen here:https://www.grasshopper3d.com/profiles/blogs/meshmachine-update?id=2985220%3ABlogPost%3A1085830&page=5#comments

However I am having difficulty with the algorithm. I have not been able to find a good resource of up to date examples or tutorials on kangaroo. It would be great if there were more tutorials, examples, and explanations to help beginners.

I have attached my file any help would be appreciated.

Triangle mesh and circle packing.gh (22.2 KB)

#2

Hi Bill,

The most up-to-date source of example files for Kangaroo is here:

I’m working on some components to simplify this sort of remeshing further, but in the meantime here’s a definition that uses only components contained in the current Kangaroo release for Rhino 6, to hopefully make things easier in terms of library references:

boundarypack.gh (15.7 KB)

It’s still a multi stage process for now.
I’ve numbered the steps you need to apply in the definition

  1. remeshing according to distance from boundary
  2. Data-Dam to pass the mesh to the next step
  3. Start the relaxation
#3

Great thank you for linking to the examples too.

One follow up question how do you set a maximum radius?

Thanks

#4

In that definition, the values going into the ConstructDomain component set the radii at the boundary and interior.

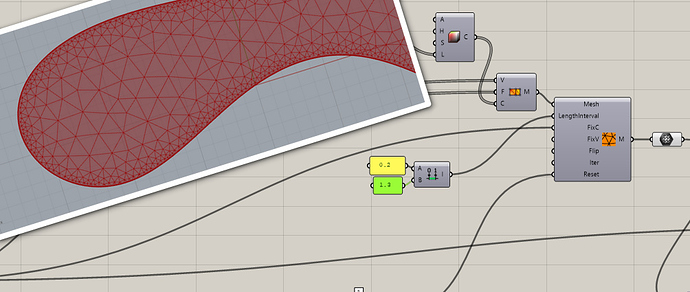

image.jpg1004×425 137 KB

#5

That nice to see how to achieve the boundary scale effect that was present in the previous version of the remesher.
