Analyse shell with hollow edge beam

Grasshopper Karamba3D
, ,
1

Hi everyone,

I know solid inside a solid is not really what rhino likes.
But how would I analyze a hollow edge beam of a shell in Karamba?
The part in red is hollow, a pocket so to speak:

grafik
grafik1578Ă—1394 177 KB

grafik
grafik1312Ă—1144 106 KB

The shell has a variable heigth, which I am taking in account like this:

grafik
grafik1992Ă—1004 170 KB

Thanks for helpig me!

Best,
Baris

2

It is a bit unclear what you want to analyse from your screenshots. Do you have a a model that shows the structure you want to analyse?

3

Hi Matthew,
thanks for your answer!

Of course:
250327_ShellWithHollowEdgebeam.gh (257.9 KB)

Best,
Baris

4

Now i understand, i think there are two strategies you can use:

  1. simply split your original surface at the “hollow” part into 2, and apply a second material thickness - this is a simplified method2
  2. another is to model both surfaces and connect them with dummy elements as such Shells with two layer - Grasshopper / Karamba3D - McNeel Forum
5

Hi Matthew,

thanks for the answer!
Do I understand right?
Since I calculate the thickness from the shell projecting points on the mesh,I could substract the hollow distance from the material thickness in this parts?

Thanks and best,

Baris

6

Hi Baris, yes that is one method.

1 Like
7

Thanks @matttam !

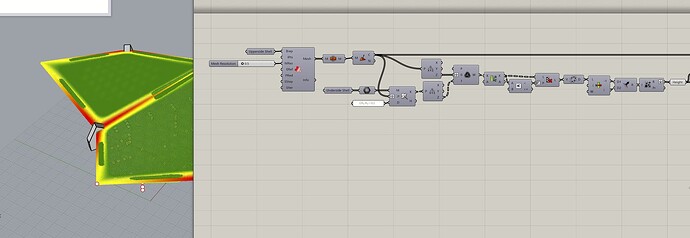

Maybe at some point it may get someone started, here is how I implemented Methode 1:

grafik
grafik1920Ă—663 66.2 KB

250328_Methode1.gh (46.9 KB)
