Simulation not working properly

Grasshopper Eddy3D
1

Hi everyone, I’m new to CFD simulations and currently on my masters degree I’m trying to do a simple wind analysis on an urban canyon in my city, I’ve been trying several types of meshing, wind directions, domain dimensions, cell size, but still apparently the simulation is not converging, and the gradient is not looking as it should be. Could someone help me with this one? Which could be the reasons that my simulation is not converging or working as it should be?
Sorry to bother!
Cheers everyone.
D.C.

PRO FORUM
PRO FORUM1414×659 54.8 KB

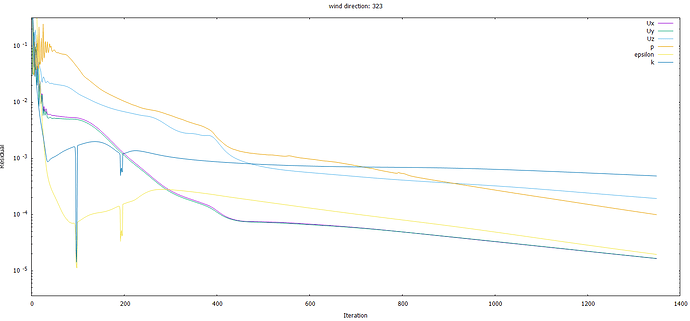

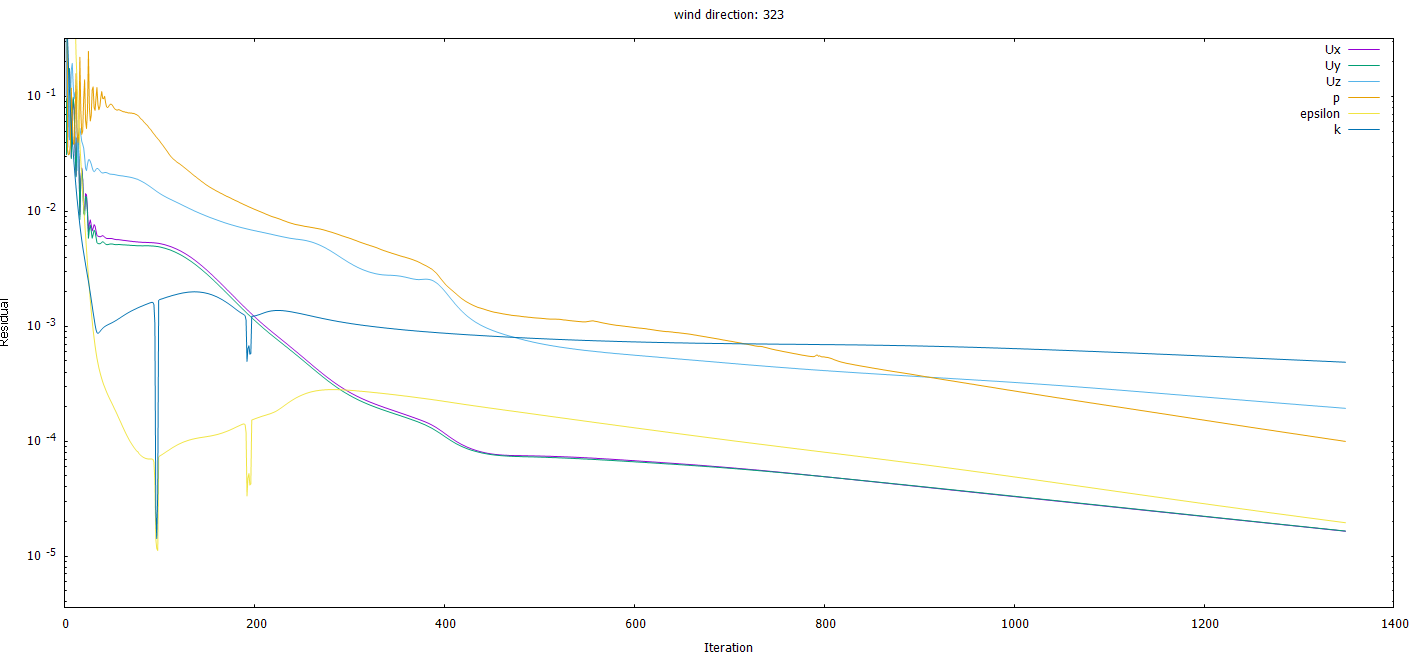

Here’s the residuals graphic.
PRO FORUM 2
PRO FORUM 2846×553 279 KB

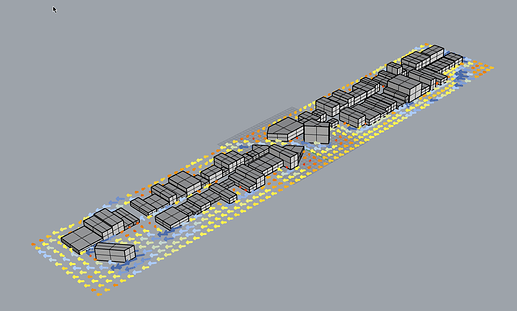

Here’s the simulation result.
ANÁLISES 03-03 GAPS REMOVIDOS.3dm (4.6 MB) SIMPLE WIND ANALYSIS2.gh (30.5 KB)

2

I’m using Rhino 7, the latest version from Eddy3d and also have BlueCFD installed on the default folder

3

Hi Daniel,

Everything you are doing looks fine to me.
Your case looks converged in my opinion.
Please try this file for probing, you should be able to reduce the number of probing points on your end.

image1350×813 89.7 KB

SIMPLE WIND ANALYSIS2.gh (28.7 KB)

Best,

Patrick

1 Like
4

Hi Patrick! I just reran a simulation, and it looks like this still, do you think there is still something wrong? My vectors are really small compared to yours, don’t know why
And thank you so much for the attention, looking forward to using Eddy3d on my masters degree, thanks for the amazing and simple plugin

12412
124121000×1000 44.6 KB

5
  1. The probes with the indices:

System.Int32 ,System.Int32 ,System.Int32 ,System.Int32 ,System.Int32 ,

can’t be probed within the simulation domain and have been discarded.

Got this error on the probe component, I’m not able to get this same gradient as yours unfortunately

6

Please see my answer here.

Best,

Patrick

7

Hello I’m having the same issue as Daniel Conforte of the sys.int 32. I click the link that provided but it is telling me that it doesn’t exist
