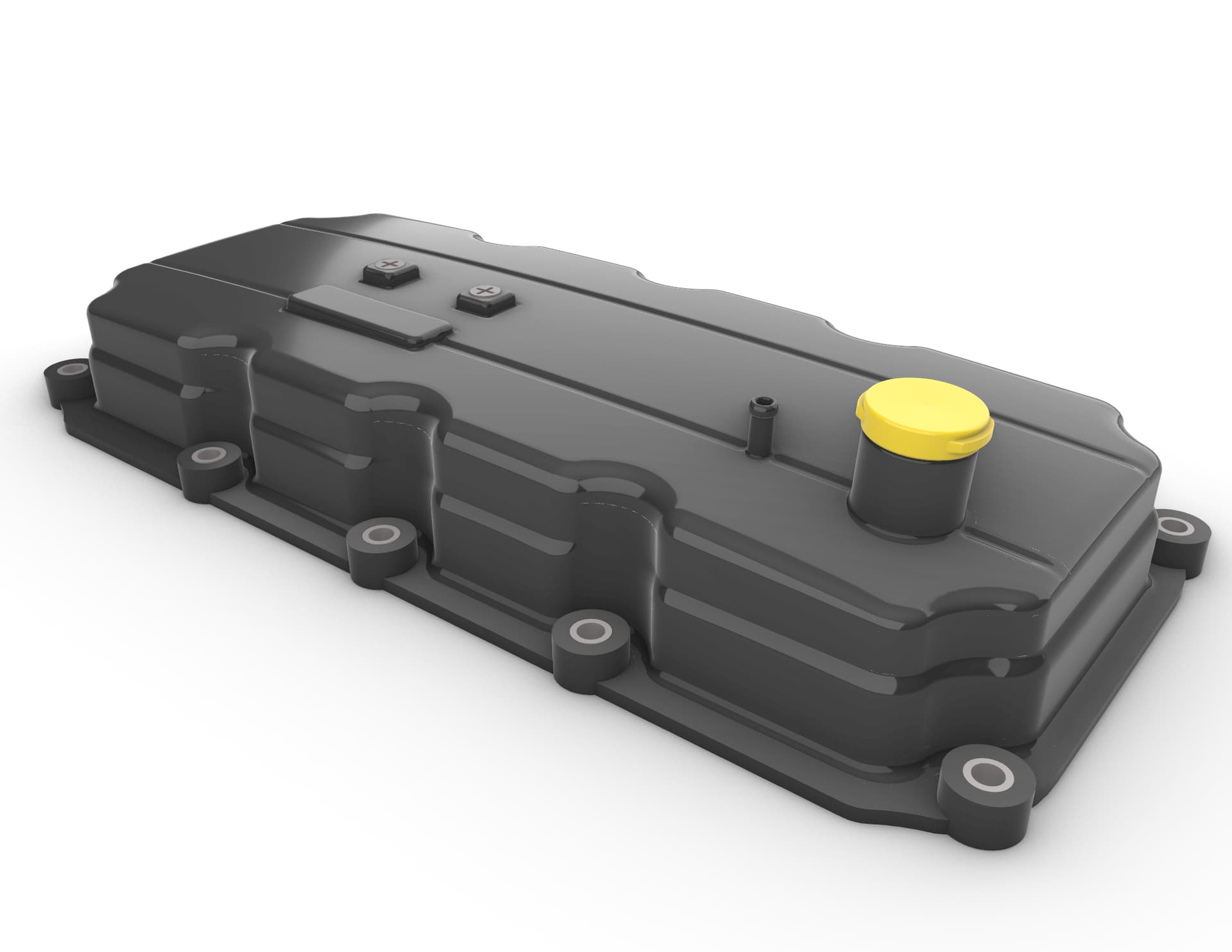

Cylinder cap hood

[sciensman]

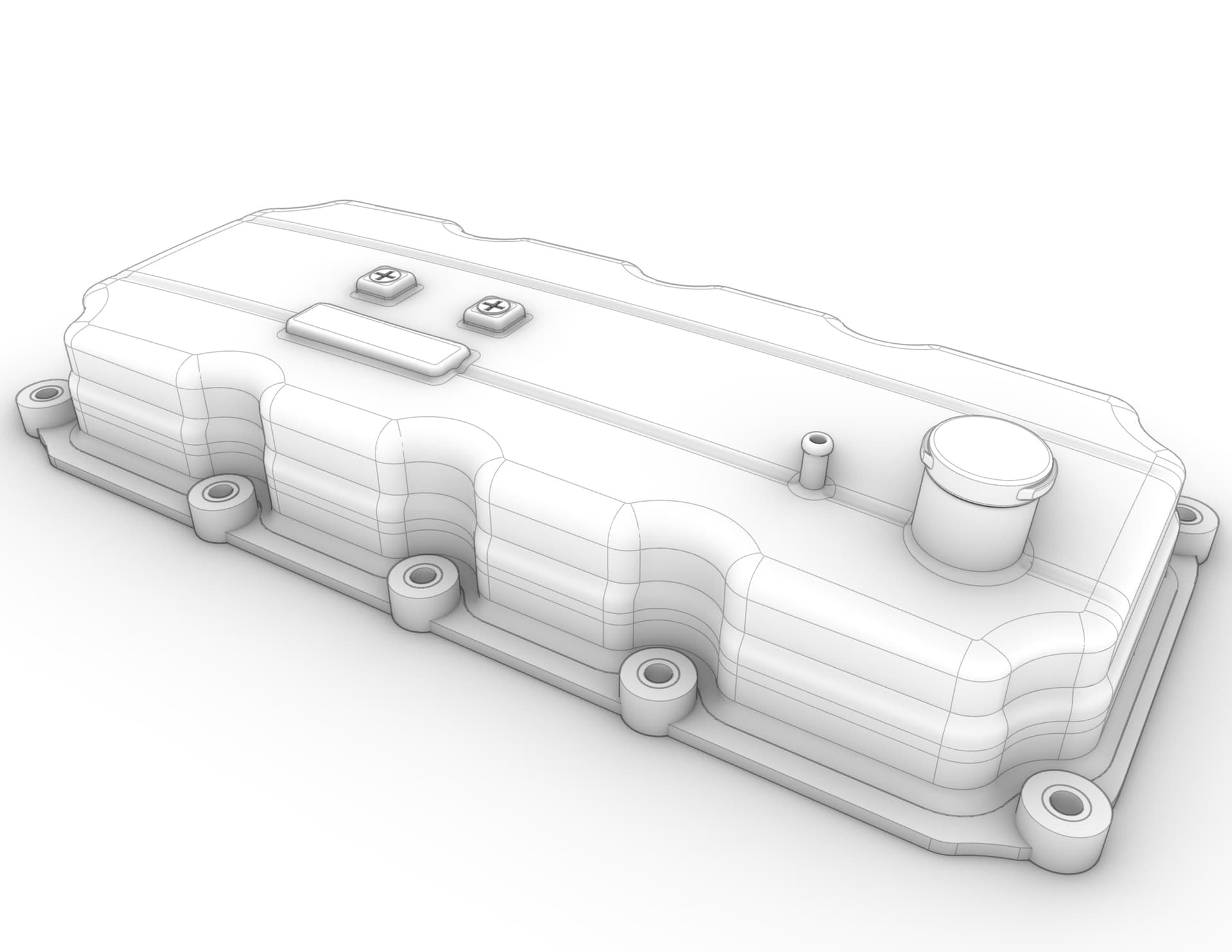

First, I began with this one

.

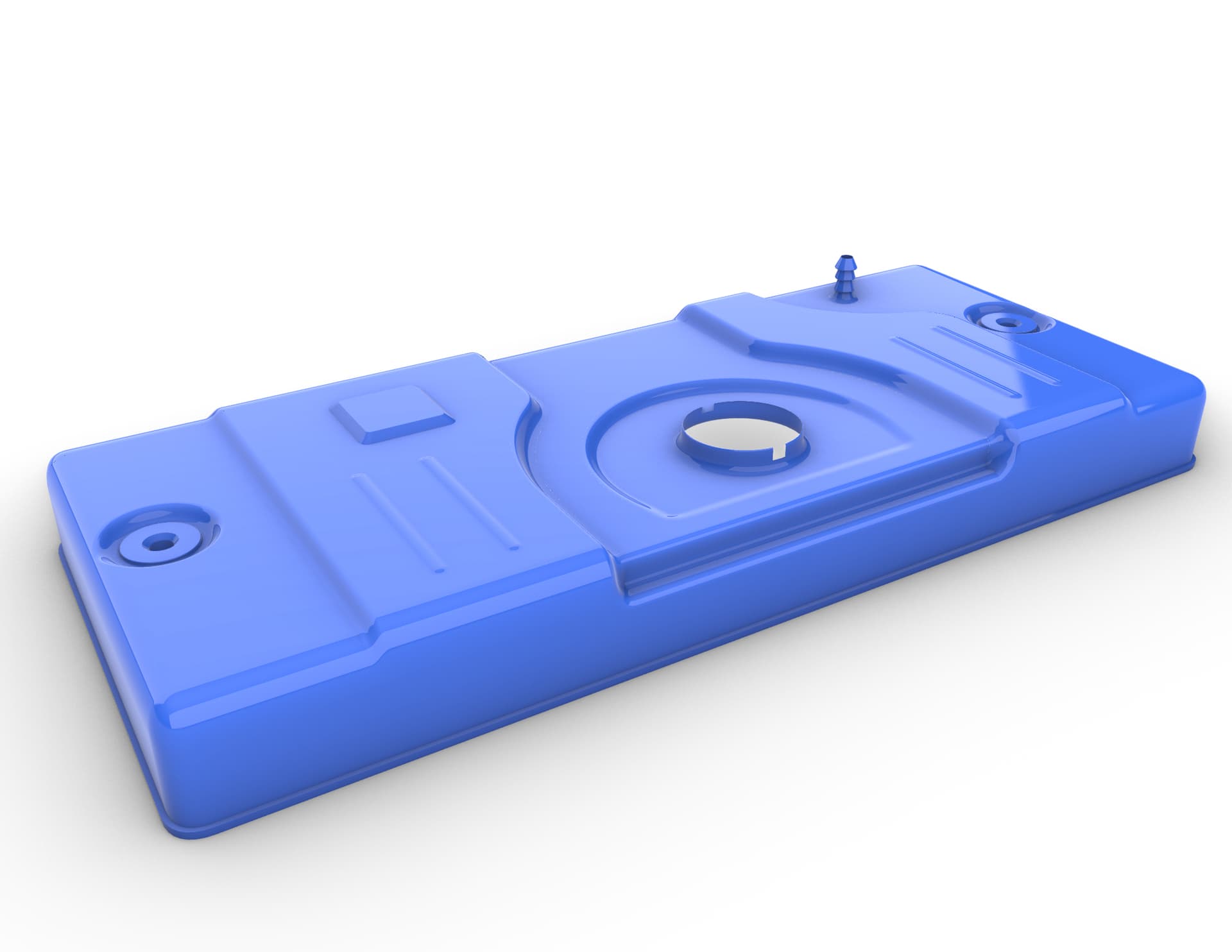

And the second model

[gurkan_bozkurt]

Those filletedges are giving me PTSD

[CADARTZ]

You should see some of my stuff then it will give you a seizure

[sciensman]

Hi, gurkan

The story goes back to a time when I visited one of the professional works of senior CADARTZ. I saw some wonderful fillets there. I asked him to explain, how he did those neat and nice fillets. He guided me mercifully, how can I do that. He also pointed to a method of senior Kyle that is called “pipe trick” that is used instead of fillet-edge occasionally. I used that method in my work as an exercise.

Of coarse, the shape of the yellow cap is an innovative design.

I searched and tried to find the topic to show you the instruction but I couldn’t find it.

[CADARTZ]

Filleting Corners

Dear master There is a question: Aside from your other professional techniques and experiences for creating such excellent engineering work, how do you created those neat complex fillets without any defect in the corners? Is there any instruction or guidance that I can follow it?

[sciensman]

Thank you for showing the topic address.
