Cyclops sunlight hours multiple breps

Grasshopper
,
1

Hi,

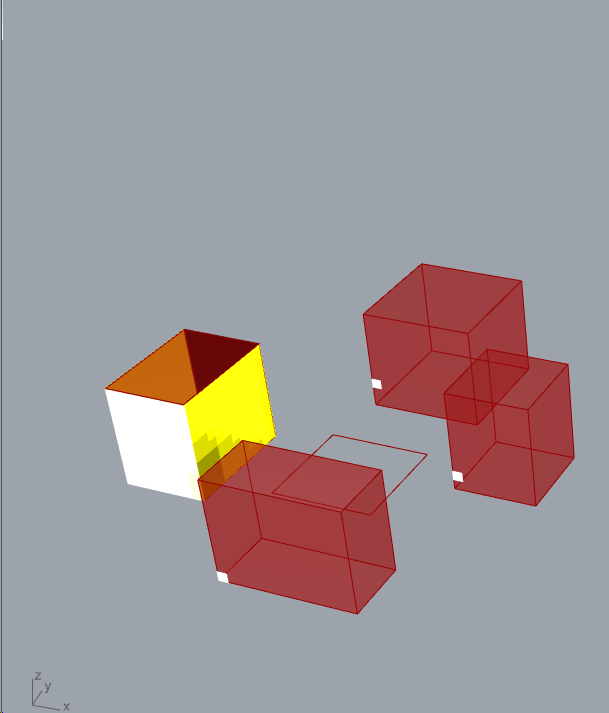

I am running into issues wrangling data somewhere in the facade grid or panel creation portion of the Cyclops sunlight hours tutorial when using a collection of breps. The same issue appears if I mesh the breps in rhino. What do I need to add/change to get the coloured mesh faces to retain their positions?

image609×713 15.2 KB

It would be very helpful to have a tutorial that shows this sort of data flow in subsequent Cyclops releases. Many thanks,

cyclops context analysis.gh (27.2 KB)

2

Hi @Maxim_Frampton , this looks like a data mismatch. You can quickly fix it, by directly extracting the mesh faces :slight_smile:

cyclops-context-analysis-fix .gh (20.8 KB)

{69E37ED3-8B9A-402A-AE3D-43693F7D0997}
{69E37ED3-8B9A-402A-AE3D-43693F7D0997}1571×774 145 KB

3

Brilliant! Mesh Explode is quite a handy component. Thanks for the speedy reply

1 Like
4

No probs, feel free to reach out in case you face any other issues. Also, please mark above answer as resolved to close topic! :slight_smile:
