Wish for rhinoscript: distance annotation

Konrad · February 24, 2019, 12:41pm

Hi,

dimensions are great, but sometimes a quick distance annotation is all one needs. I tried to use rhinoscript to make the following:
Pick point A,
pick point B,
draw line AB
apply arrowheads
place a textdot in the middle with the distance between points

somehow my script didn’t work - has someone an idea how to achieve this?
thanks

ivelin.peychev · February 24, 2019, 1:01pm

Haven’t tested this but it appears there’s an example here:

Konrad · February 24, 2019, 1:06pm

thanks-
the script creates a radial dimension not distance , but maybe I can modify the code

Konrad · February 24, 2019, 1:25pm

Pick point A,
pick point B,
draw line AB
calc distance
calc mid-point
apply arrowheads
place a textdot in the middle with the distance between points

! _NoEcho _-Runscript (
    Option Explicit

Call Distbetween()
Sub Distbetween()
Dim pt,pt2,dist,units,prec,msg
pt = Rhino.GetPoint("Pick point on object")
If Not IsArray(pt) Then Exit Sub
            pt2 = Rhino.GetPoint("Pick point on object")
If Not IsArray(pt) Then Exit Sub
dist = Rhino.Distance(pt,pt2)
Rhino.AddLine pt, pt2
            units = Rhino.UnitSystemName(,, True)
prec = Rhino.UnitDistanceDisplayPrecision()
msg = "Distance between points is "
Rhino.TextDotPoint Round(dist, prec), Rhino.PointDivide (Rhino.PointAdd(pt, pt2), 2)

             Call Rhino.Print(msg & Cstr(Round(dist, prec)) & " " & units)
End Sub
)

ivelin.peychev · February 24, 2019, 1:38pm

do you particularly need that text dot?

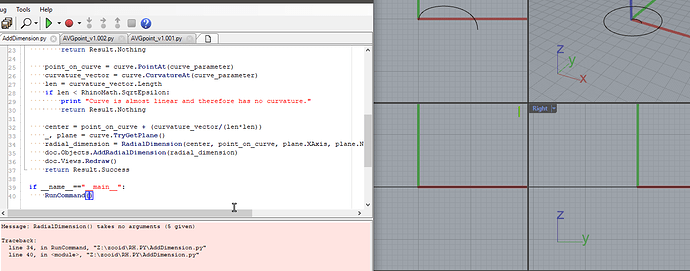

Funny thing about this RadialDimension example was that you copy paste it directly. Run it it asks you to select a curve. You comply, and then it throws an error.
How reliable should the examples in the API be?

ivelin.peychev · February 24, 2019, 1:40pm

I just realized you use VB. I can’t help you with VB.

VB is the German Language of all programming languages.

Konrad · February 24, 2019, 1:46pm

well I am german, but still I don’t have an idea what I am doing

ivelin.peychev · February 24, 2019, 1:49pm

haha, ironic.

Well have you tried Python instead of VB. Much easier to comprehend. Not my expression, many people on the internet say Python is the English of the programming languages.

Although, this is a bad python example:

from Rhino import *
from Rhino.DocObjects import *
from Rhino.Commands import *
from Rhino.Geometry import *
from Rhino.Input import *
from scriptcontext import doc

Konrad · February 24, 2019, 2:01pm

Hey,hey

success! programing something i dont have a clue of … well

but still missing the arrowheads

! _NoEcho _-Runscript (
Option Explicit

Call Distbetween()
Sub Distbetween()
Dim pt,pt2,dist,units,prec,msg
pt = Rhino.GetPoint(“Pick point on object”)
If Not IsArray(pt) Then Exit Sub
pt2 = Rhino.GetPoint(“Pick point on object”)
If Not IsArray(pt) Then Exit Sub
dist = Rhino.Distance(pt,pt2)
Rhino.AddLine pt, pt2
units = Rhino.UnitSystemName(, True)
prec = Rhino.UnitDistanceDisplayPrecision()
msg = "Distance between points is "
Rhino.AddTextDot Cstr(Round(dist, prec)), Rhino.PointDivide (Rhino.PointAdd(pt, pt2), 2)

Call Rhino.Print(msg & Cstr(Round(dist, prec)) & " " & units)
End Sub
)

Cyver · February 24, 2019, 2:07pm

Hi,

Try something like this :

Call Distbetween()
Sub Distbetween()
	Dim pt,pt2,dist,units,prec,msg, arrLine
	pt = Rhino.GetPoint("Pick point On object")
	If Not IsArray(pt) Then Exit Sub
	pt2 = Rhino.GetPoint("Pick point On object")
	If Not IsArray(pt) Then Exit Sub
	dist = Rhino.Distance(pt, pt2)
	arrLine = Rhino.AddLine(pt, pt2)
	Call Rhino.CurveArrows(arrLine, 3)
	units = Rhino.UnitSystemName(, True)
	prec = Rhino.UnitDistanceDisplayPrecision()
	msg = "Distance between points is "
	Rhino.AddTextDot Cstr(Round(dist, prec)), Rhino.PointDivide(Rhino.PointAdd(pt, pt2), 2)

	Call Rhino.Print(msg & Cstr(Round(dist, prec)) & " " & units)
End Sub

Konrad · February 24, 2019, 2:10pm

many thanks!

clement · February 24, 2019, 2:22pm

Hi @Konrad, you might also take care if the picked points are far enough from eachother so a line can be added, otherwise you’ll get an error eg. if both points are identical.

Option Explicit

Call Main()
Sub Main()

        Dim arrPt0, arrPt1, dblTolerance, dblDistance, strLine, arrMidPt

	arrPt0 = Rhino.GetPoint("First point")
	If IsNull(arrPt0) Then Exit Sub

	arrPt1 = Rhino.GetPoint("Second point")
	If IsNull(arrPt1) Then Exit Sub

	' exit if the distance is to small to add a line
	dblDistance = Rhino.Distance(arrPt0, arrPt1)
	dblTolerance = Rhino.UnitAbsoluteTolerance()
	If dblDistance < dblTolerance Then Exit Sub

	' create line with arrowheads
	strLine = Rhino.AddLine(arrPt0, arrPt1)
	If IsNull(strLine) Then Exit Sub
	Call Rhino.CurveArrows(strLine, 3)

	' add annotation dot to line mid point
	arrMidPt = Rhino.PointDivide(Rhino.PointAdd(arrPt0, arrPt1), 2.0)
	Call Rhino.AddTextDot(Round(dblDistance, 3), arrMidPt)

End Sub

_
c.

Konrad · February 24, 2019, 2:28pm

thanks – nice, even with comments!

beautiful! :

encephalon · February 24, 2019, 3:08pm

interesting tool, python version anybody?

Konrad · February 24, 2019, 3:14pm

hey clement,

could I ask for a little help once more?
I tried to change the color of the dot to white
i just added this line after addTextDot:

       Call.Rhino.ObjectColor (Rhino.LastCreatedObjects(), (255,255,255))

clement · February 24, 2019, 3:45pm

Hi @Konrad, you might try this:

strDot = Rhino.AddTextDot(Round(dblDistance, 3), arrMidPt)
Call Rhino.ObjectColor(strDot, vbWhite)

_
c.

clement · February 24, 2019, 3:55pm

import Rhino
import scriptcontext
import rhinoscriptsyntax as rs

def DoSomething():
    pt0 = rs.GetPoint("First Point")
    if not pt0: return

    pt1 = rs.GetPoint("Second Point", pt0)
    if not pt1: return

    distance = pt0.DistanceTo(pt1)

    if distance > scriptcontext.doc.ModelAbsoluteTolerance:
        line_id = rs.AddLine(pt0, pt1)
        rs.CurveArrows(line_id, 3)
        mid_pt = (pt0 + pt1) * 0.5
        dot_id = rs.AddTextDot(round(distance, 3), mid_pt)
        scriptcontext.doc.Views.Redraw()

DoSomething()

_
c.

Konrad · February 24, 2019, 3:55pm

thanks, time for me to learn some rs myself

Konrad · February 24, 2019, 4:54pm

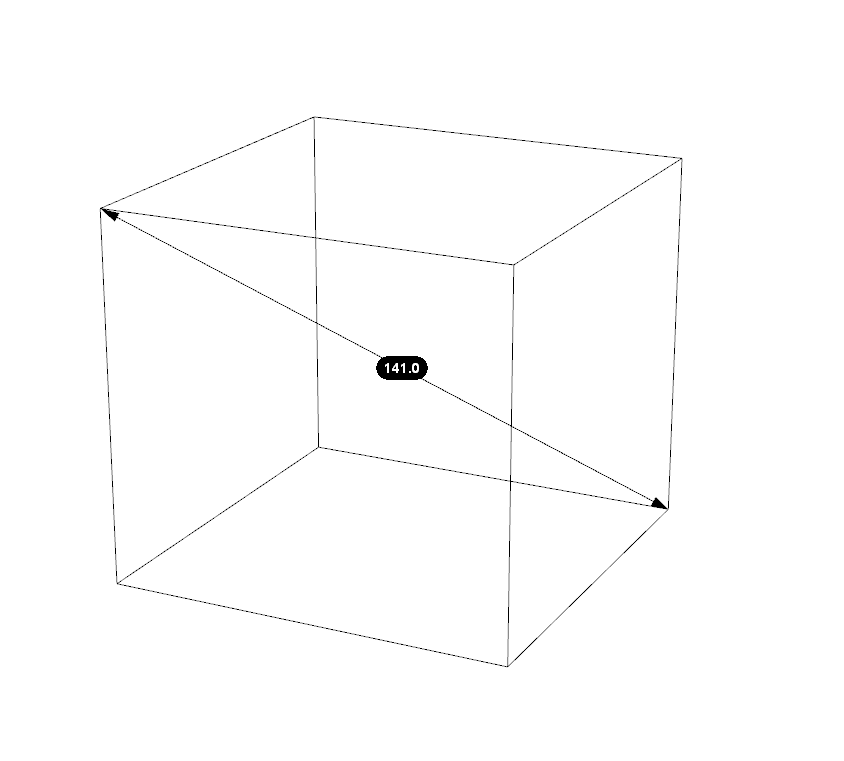

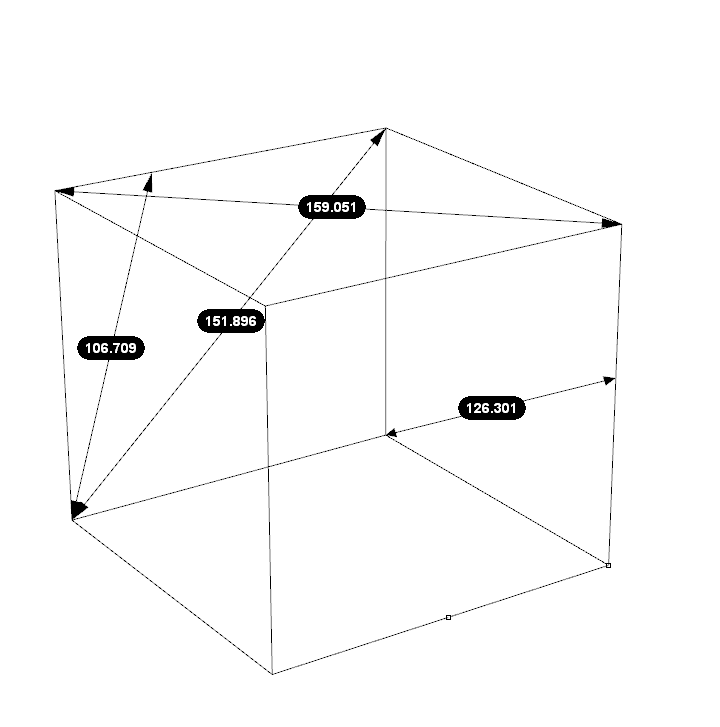

just to share the script with everyone:
I’ve changed the input method to getLine for more feedback and grouped the output

use at your own risk

! _NoEcho _-Runscript (
Call Distbetween()
Sub Distbetween()
  Dim arrPt0, arrPt1, dblTolerance, dblDistance, strLine, arrMidPt,  strDot, strGroup, strLineArr
' create line with arrowheads
strLineArr = Rhino.GetLine
            If IsNull(strLineArr) Then Exit Sub
            If IsNull(strLineArr(0)) Then Exit Sub
            If IsNull( strLineArr(1)) Then Exit Sub
            strLine = Rhino.AddLine( strLineArr(0), strLineArr(1))
            If IsNull(strLine) Then Exit Sub


            ' exit if the distance is to small to add a line
dblDistance = Rhino.Distance(strLineArr(0), strLineArr(1))
dblTolerance = Rhino.UnitAbsoluteTolerance()
If dblDistance < dblTolerance Then Exit Sub
            Call Rhino.CurveArrows(strLine, 3)

' add annotation dot to line mid point
arrMidPt = Rhino.PointDivide(Rhino.PointAdd(strLineArr(0), strLineArr(1)), 2.0)

           strDot = Rhino.AddTextDot(Round(dblDistance, 3), arrMidPt)
            Call Rhino.ObjectColor(strDot, vbWhite)

            strGroup = Rhino.AddGroup()
            Call Rhino.AddObjectToGroup( strDot, strGroup)
           Call Rhino.AddObjectToGroup( strLine, strGroup)

End Sub
)
