Total radiation on a tilted surface

Grasshopper
1

Good afternoon,

I’m running a solar radiation simulation by Ladybug. The total radiation for the flat vertical surface is much higher than the tilted surface. That does not make sense, since the sun should be vertical on the slanted surface. Can anyone tell me why I’m getting this, please?

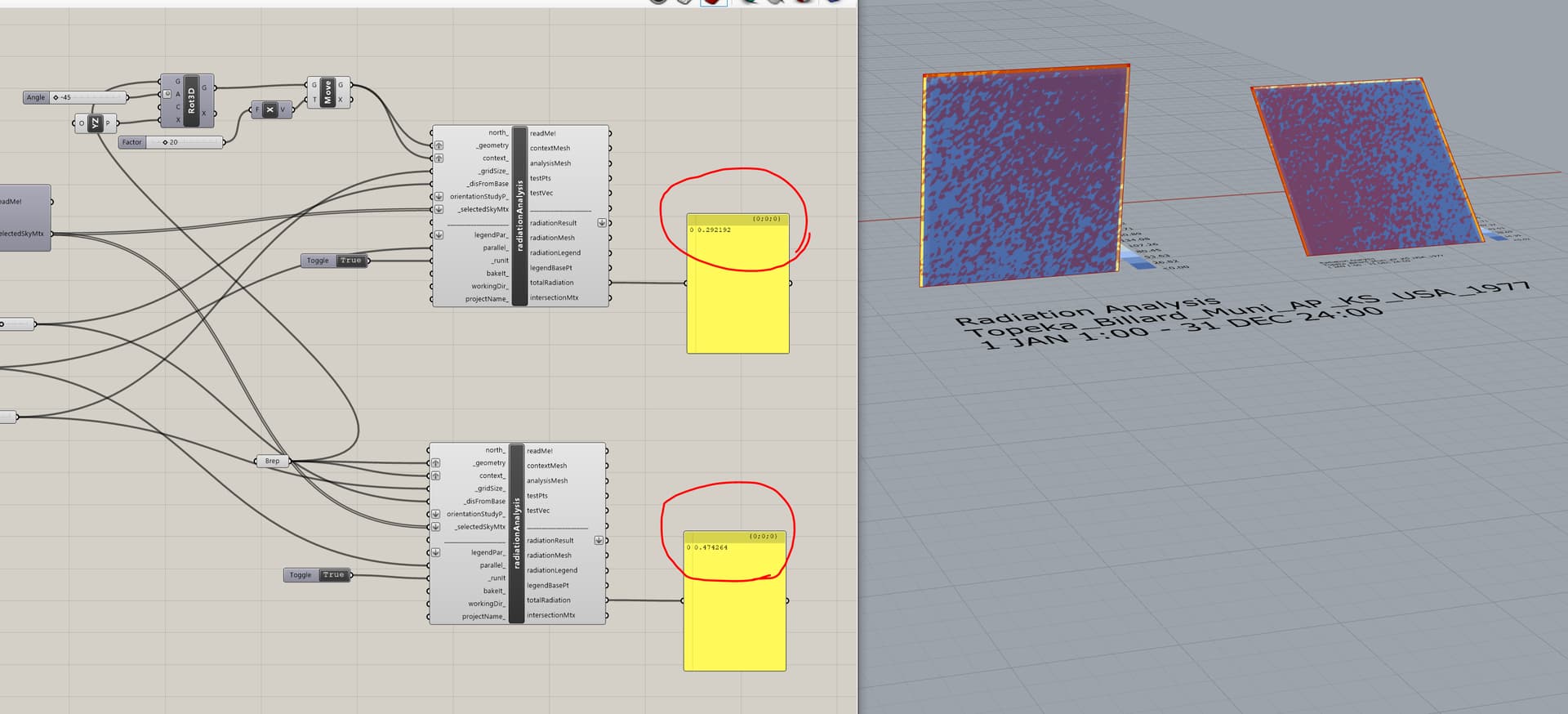

total radiation.PNG
total radiation.PNG1920×874 113 KB

Angle test.gh (405.5 KB)
USA_KS_Topeka-Billard.Muni.AP.724560_TMY3.epw (1.6 MB)

2

I think you might be shading the test surface with the surface you input as the analysis surface? Been a while since I used Ladybug.

3

No, I’m Not. I tried to unplug the context but the result is still the same.

4

Hi -

Please visit https://discourse.ladybug.tools/ for questions related to the Ladybug Tools.
-wim
