Problem on orienting shapes onto surface

Grasshopper
1

PERFORATED PANEL3.3dm (10.2 MB)
20220511_PERFORATED PANEL_trial on surface3.gh (12.5 KB)

Hello! I am trying to create a script where the circles oriented to my rhino surface can vary in size according to its distance from my attractor surface. But I m having problems orienting the circles onto the surface, as you may see from my screenshot. When i tried using the orient tool in grasshopper, the circles become scattered. May anyone please enlighten me? :pray: thanks!

01 non-oriented images

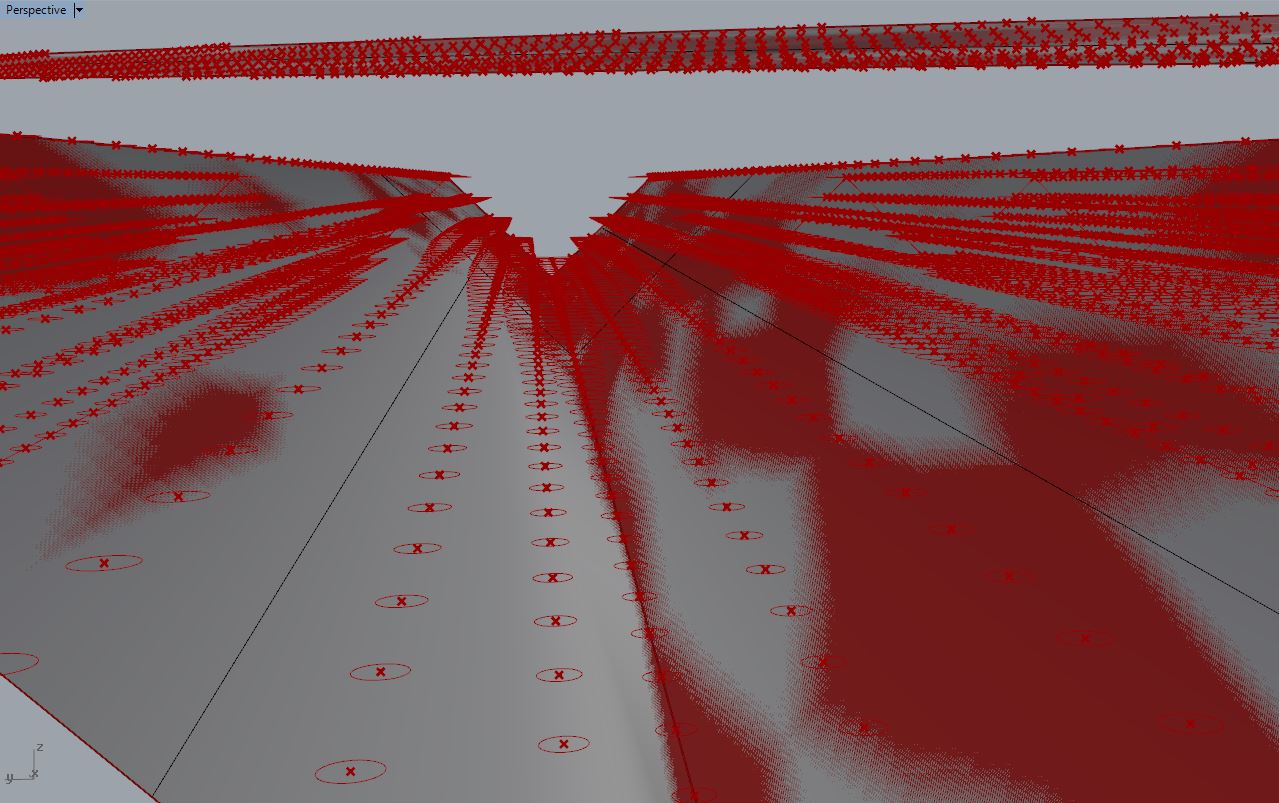

01 non-oriented images1279×803 144 KB

image1405×711 96.4 KB

2

Hi!
Instead of using the Circle, you can use a Circle CNR and input the Normals of the Surface Division as normals for the Circles.
You will have to remove the points on the edges of the surface, as you will not be able to drill holes there.
Regards,

2 Likes
3

Thank you so much for the advice! :grinning: :pray: it worked!!
