Plan view missing for custom furniture style

VisualARQ
1

Hi, I am learning to make my own furniture template in VA 3 and I came across on an issue.
I just made a small slender solid and saved it to rhino model. Now I brought this same model into furniture style by creating new furniture style. I placed it on level 1 but its not visible in plan view unless top plan views are switched on. I also checked the cutting plane and its fine.Is it a bug? I am sharing my rhino model with the test file.

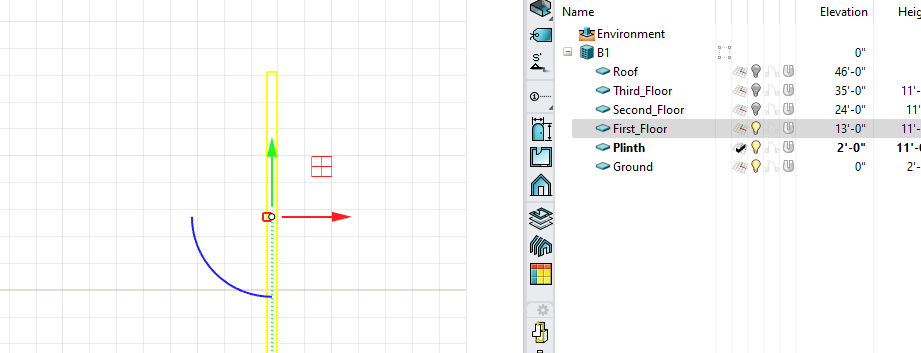

image921×353 28.3 KB

test.3dm (4.0 MB)

2

Hi @asisintel just uncheck the 3D block assigned to the plan view representation of that furniture style, and the object will be visible in plan views.

image782×586 31.1 KB

Actually, only 2D blocks should be allowed for plan view representation of object styles created from blocks.

1 Like
