Worksession with non-native files (DGN) scale files by 1000 without asking

Worksessions has previously been discussed in Discourse (https://mcneel.myjetbrains.com/youtrack/issue/RH-37060). I have an issue with DGN-files which might be triggered by the solution on RH-37060?

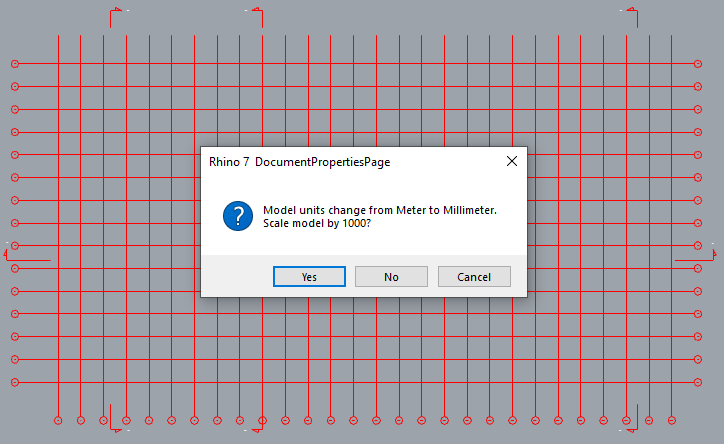

When I open a DGN-file in Rhino 7 SR7 it display everything more-or-less correctly (except dimensions and hatches) and Rhino interprets the units of the file to be in meters, so I can work with the file right away. When I use File > Insert, File > Import - or File > Worksession to Attach the same DGN-file to an empty Rhino drawing in mm (using no template), everything is scaled by a factor 1000, without me being asked or given an option NOT to scale the drawing but only convert the units. A grid of 3000 mm ends up being 3000000 similar to if I was choosing YES to the question of scaling when using the Units command. Doing exactly the same in AutoCAD will give me a correct translation of the DGN-file in mm.

Please_allow_for_converting_units_or_not

1m_modul.dgn (31.5 KB)
3m_modul+PaperSpace_A4.pdf (77.7 KB)
1m_modul-Default.dwg (26.8 KB)

USER FEATURE REQUEST:

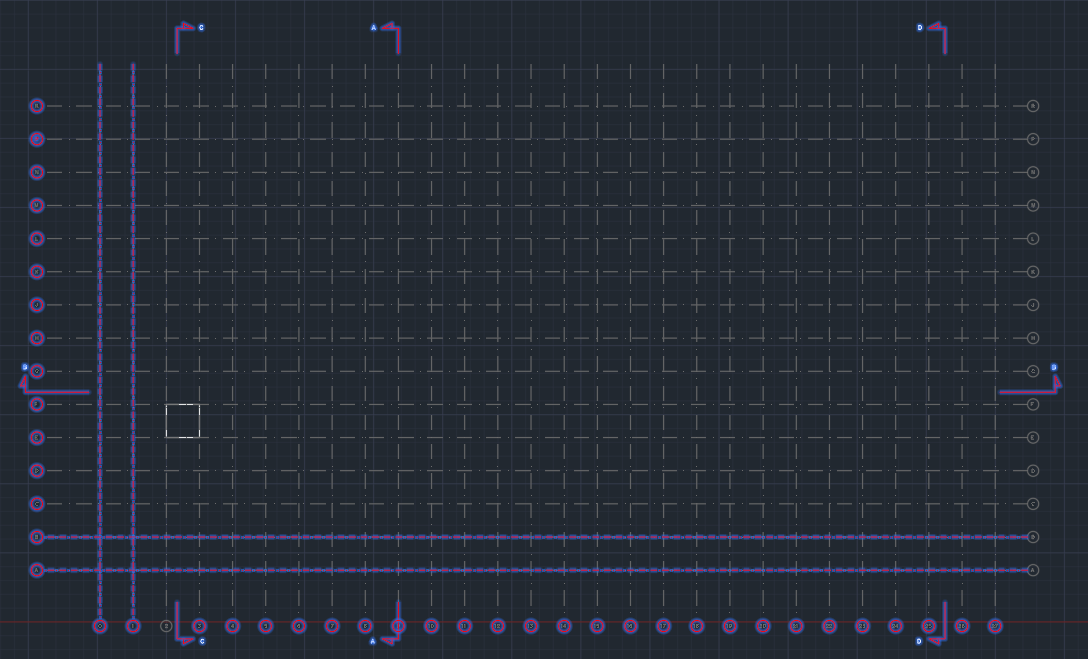

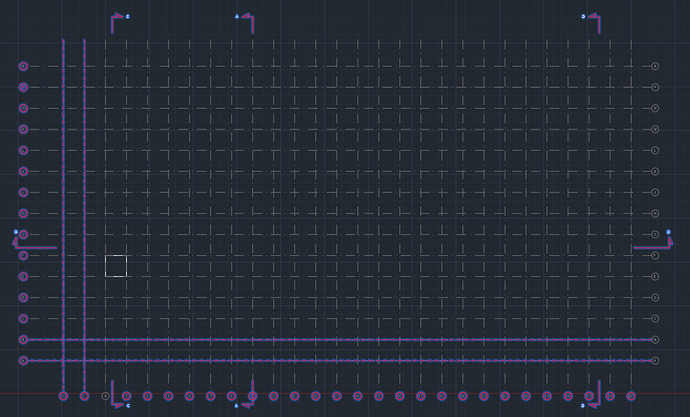

Both AutoCAD (DWG) and Microstation (DGN) allow each Xref to be “Clipped” using a polygon or a rectangle. Similar it is possible to “WipeOut” areas of the Xref’s so you then can add new geometry.
It would be really nice to have the same two features in Rhino - and Rhino should be able to read it.

Both AutoCAD (DWG) and Microstation (DGN) allow for “cherrypicking” objects from an X-Ref and place them as a copy in the current drawing. In AutoCAD this picking-operation is called “NCOPY”.

AutoCAD_2022_XRef_Create_Clipping_Boundary

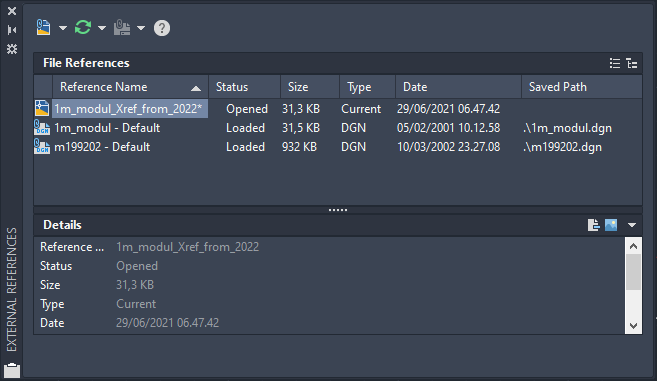

AutoCAD_2022_XRef_Manager_NoPath

Hello -
This is standard behavior as far as I can see - if you Import, the file units are already known and the incoming file is scaled to be the correct size, not the same number of units as the original; presumably you do not want the import of a file to change the units of the currently open file. Of you Open the dgn, then the units are set to whatever is in that file, there is nothing to break by setting the units.

Does that make sense or am I missing the point?

-Pascal

Hi Pascal. What makes sense for me the most is offering the user an option for scaling during worksession attachments similar to on import. Ideally an option to choose the final units imported to be fx mm (as in AutoCAD) and then only scale the imported geometry if in other units.
Since Rhino offers us no insight on the fileunits in an imported file, the software should never just scale by 1000x as the “default” behaviour.

Hi Tim - I think this is not what is happening - the object keeps its original size, but in the units of the file into which it is imported - is that not correct?

-Pascal

Hmm. I’m not quite sure since I only have access to AutoCAD 2020/2022 and Rhino 6/7/WIP. When I attach the DGN-files in AutoCAD they show perfect size in mm without me doing anything special to make that happen. I can attach a bunch of them and they share origin. When I OPEN one of the DGN files in Rhino, the units are interpreted (by Rhino) as Meters (as seen in the bottomline), but the units are in fact in mm. - When I open a Rhino-template in mm and use Worksession to attach the same DGN it is automatically scaled (by Rhino) by a factor of 1000 (converting M to the template’s mm).

Hi - I think the issue is that Rhino interprets DGN scale at 1000x what it actually is for Worksessions or Import. Even though the DGN file units are set in mm, they are interpreted in Rhino as metres, meaning when the DGN is imported / worksessioned in, it comes in at 1000x scale. DWGs come in at the correct scale. It would be very inconvenient to have to change the units in the DGN file just for the Rhino import. I think the best thing would be to fix the Rhino interpretation, rather than adding units or scale options in worksessions. This is the same for Rhino 5 and 7.

Just to note, you can get around this by INSERTING the DGN, and choose Linked - Reference. You are then able to specify the scale as 1/1000, which makes it the correct size, and it still works kind of like a worksessioned file.

Hi.
I believe the issue was solved in a du-jour-build in July 2021.
//Tim

ons. 24. nov. 2021 kl. 01.48 skrev user1434 via McNeel Forum <mcneel@discoursemail.com>:
