# What setting makes the number sit within the arrows in dims v8?

**URL:** <https://discourse.mcneel.com/t/what-setting-makes-the-number-sit-within-the-arrows-in-dims-v8/202162>\
**Category:** Rhino for Windows\
**Tags:** windows\
**Created:** [March 27, 2025, 8:51pm UTC](https://discourse.mcneel.com/t/what-setting-makes-the-number-sit-within-the-arrows-in-dims-v8/202162 "2025-03-27T20:51:02Z")\
**Posts on this page:** 6\
**Page:** 1

<div class="post-metadata">

**Author:** ![Steve1](https://sea3.discourse-cdn.com/mcneel/user_avatar/discourse.mcneel.com/steve1/32/487081_2.png) [@Steve1](https://discourse.mcneel.com/u/Steve1)\
**Post date:** [March 27, 2025, 8:51pm UTC](https://discourse.mcneel.com/t/what-setting-makes-the-number-sit-within-the-arrows-in-dims-v8/202162/1 "2025-03-27T20:51:02Z")

</div>

Hi,
V8

 ![dim between arrows](https://global.discourse-cdn.com/mcneel/uploads/default/original/4X/d/d/a/ddaa12536bd225e3fd7e615c8d7f953531de52ef.jpeg)

Thought I had all the settings sussed but this dim data wont go inside the arrows, when it will in V5.
what setting fixes that ?

 ![dim between arrows settings](https://global.discourse-cdn.com/mcneel/uploads/default/original/4X/8/6/4/864b7532d765695e9b34a9452d9626dfee6f4b56.jpeg)

It was drawn new in V8, not imported from V5.
[dims to be inside but how .3dm](https://discourse.mcneel.com/uploads/short-url/7M48KZhA6NokabG2VBtrmHoxG2P.3dm) (2.2 MB)

Cheers

Steve

---

<div class="post-metadata">

**Author:** ![jeremy5](https://sea3.discourse-cdn.com/mcneel/user_avatar/discourse.mcneel.com/jeremy5/32/773943_2.png) [@jeremy5](https://discourse.mcneel.com/u/jeremy5)\
**Post date:** [March 27, 2025, 9:16pm UTC](https://discourse.mcneel.com/t/what-setting-makes-the-number-sit-within-the-arrows-in-dims-v8/202162/2 "2025-03-27T21:16:42Z")

</div>

It is under Dimension Lines within the Annotation Properties. Pick In Line from the dropdown.

 ![image](https://global.discourse-cdn.com/mcneel/uploads/default/original/4X/1/a/6/1a60664fb33ee43f78663337f9c4780f3b68f67e.png)

Or under Dimensions within the Annotation Styles panel.

 ![image](https://global.discourse-cdn.com/mcneel/uploads/default/original/4X/e/9/4/e94701b95a8ea7e6f17830c6c23395f9e27931f2.png)

HTH
Jeremy

---

<div class="post-metadata">

**Author:** ![Steve1](https://sea3.discourse-cdn.com/mcneel/user_avatar/discourse.mcneel.com/steve1/32/487081_2.png) [@Steve1](https://discourse.mcneel.com/u/Steve1)\
**Post date:** [March 27, 2025, 9:30pm UTC](https://discourse.mcneel.com/t/what-setting-makes-the-number-sit-within-the-arrows-in-dims-v8/202162/3 "2025-03-27T21:30:45Z")

</div>

Hi,
@jeremy5
Thanks, fo file properties annotations, found that, done that, fails, close and reopen file, fails.

 ![in line solve outside arrows dims](https://global.discourse-cdn.com/mcneel/uploads/default/original/4X/1/1/7/117b47cca92074f39813cd9eba222ad9a7ee70b1.jpeg)

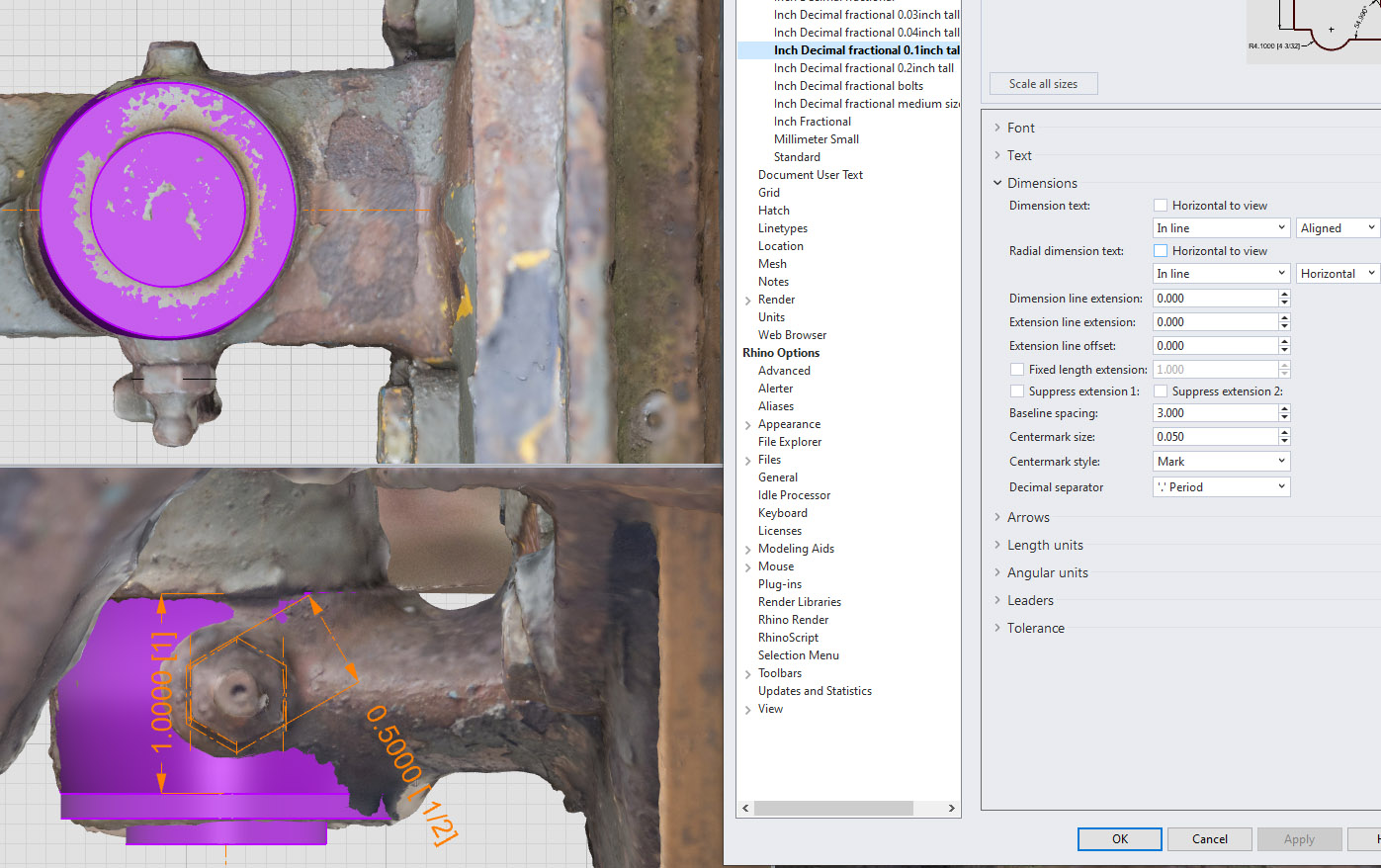

 ![in line solve outside arrows dims fails](https://global.discourse-cdn.com/mcneel/uploads/default/original/4X/1/8/4/184d4168e44a6d3d4852ed3b39966ac0a9a5ce6c.jpeg)
and it is using that style. 0.1 inch decimal.

Steve

---

<div class="post-metadata">

**Author:** ![Steve1](https://sea3.discourse-cdn.com/mcneel/user_avatar/discourse.mcneel.com/steve1/32/487081_2.png) [@Steve1](https://discourse.mcneel.com/u/Steve1)\
**Post date:** [March 27, 2025, 9:36pm UTC](https://discourse.mcneel.com/t/what-setting-makes-the-number-sit-within-the-arrows-in-dims-v8/202162/4 "2025-03-27T21:36:58Z")

</div>

Here is the template within which I also need that to work.

Small Objects - Inches Decimal V8 1to1 ready for V5.3dm

opened thaqt template, carried out the fix.

I have done that and made a copy of the 0.1 and made it narrow and it fails.
saved as suffix modded.
[Small Objects - Inches Decimal V8 1to1 ready for V5 modded.3dm](https://discourse.mcneel.com/uploads/short-url/o4i1sKKu27ubDLqslgGP3uz9fWt.3dm) (2.2 MB)

Steve

---

<div class="post-metadata">

**Author:** ![jeremy5](https://sea3.discourse-cdn.com/mcneel/user_avatar/discourse.mcneel.com/jeremy5/32/773943_2.png) [@jeremy5](https://discourse.mcneel.com/u/jeremy5)\
**Post date:** [March 27, 2025, 10:11pm UTC](https://discourse.mcneel.com/t/what-setting-makes-the-number-sit-within-the-arrows-in-dims-v8/202162/5 "2025-03-27T22:11:22Z")

</div>

Sorry, I misunderstood what you were asking for: that setting is to set the text in the line or above it.

This is the one I think you want:

 ![image](https://global.discourse-cdn.com/mcneel/uploads/default/original/4X/c/d/7/cd7bb67885b1f4997f876bb45b0e6c2107047780.png)

---

<div class="post-metadata">

**Author:** ![Steve1](https://sea3.discourse-cdn.com/mcneel/user_avatar/discourse.mcneel.com/steve1/32/487081_2.png) [@Steve1](https://discourse.mcneel.com/u/Steve1)\
**Post date:** [March 27, 2025, 11:56pm UTC](https://discourse.mcneel.com/t/what-setting-makes-the-number-sit-within-the-arrows-in-dims-v8/202162/6 "2025-03-27T23:56:11Z")

</div>

Hi,
@jeremy5
part success now, but cannot get numbers **above** the line, text gap value did nothing.
So what is text gap operating on ?
**arrows clashing with numbers now.**

odd this as I thought I had got all my dims matching V5.

 ![part success](https://global.discourse-cdn.com/mcneel/uploads/default/original/4X/c/3/2/c32cba583a2cbf6100a857eae2b47310bc264813.jpeg)

 ![V5 dim behaves](https://global.discourse-cdn.com/mcneel/uploads/default/original/4X/2/a/3/2a3b1f7b56a2371c3c0dd52534fcf429cd326d55.jpeg)

update
SOLVED IT, its the next section down. (not very logical the dims settings layout)

 ![dims above arrowd solved](https://global.discourse-cdn.com/mcneel/uploads/default/original/4X/3/9/0/390537ad364648e31866dc054fc8e118944a1a09.jpeg)

Steve
