Wave equation 3D graph

Grasshopper
1

Hi all,

this must be something simple, but I cannot get my head around this.

I want to graph this equation in grasshopper:

matlab - Plotting wave equation - Stack Overflow.

I get quite another graph :slight_smile:

image487×687 16.7 KB

GH definition in attachment. What am I doing wrong :/?

Wave_Drop Equation.gh (8.2 KB)

image1382×506 63.2 KB

Thanks in advance!

2

hello
indeed you dot it well, except pat Rhino lives in an non deformed world. In order to see the shape or you change the “20” to lower values or scaleNU in Z the shape.

image925×769 63.3 KB


3

See attached as well

Mesh_WaveLike_EntryLevel_V1.gh (118.3 KB)

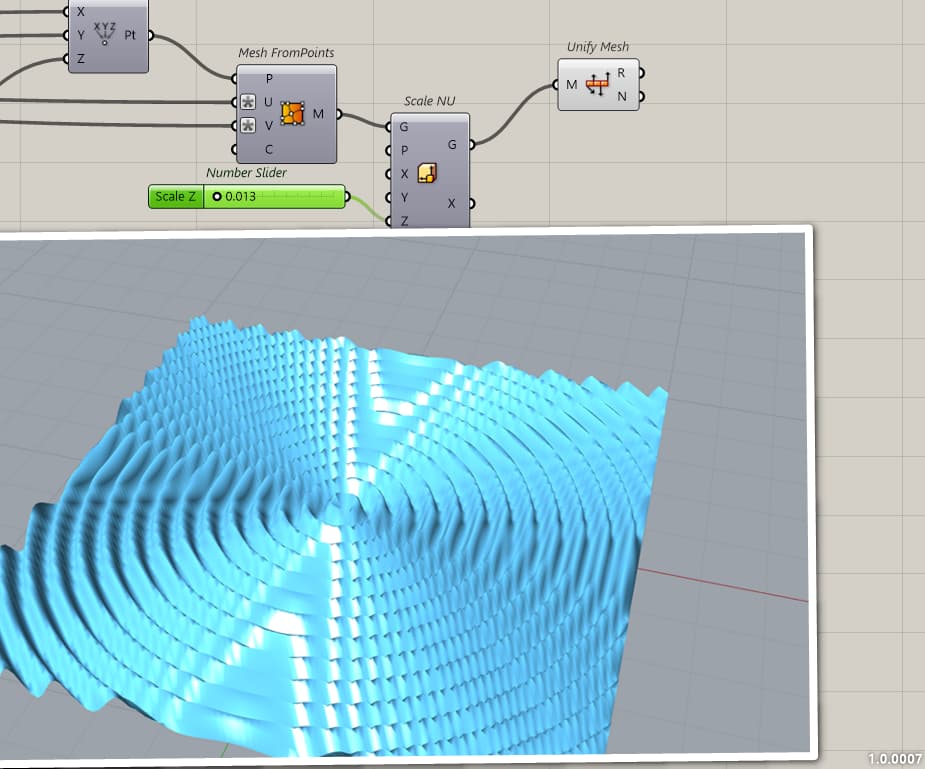

Screen Shot 003
Screen Shot 0031663×679 169 KB

BTW: There’s faaaaaar more elabolated takes for the “drop on Mesh” thing. Search the Forum (I forgot the related thread name(s)). Anyway see this as well:
