The lines disappear in section

VA.3dm (2.9 MB)

Hio @jon-vrin,

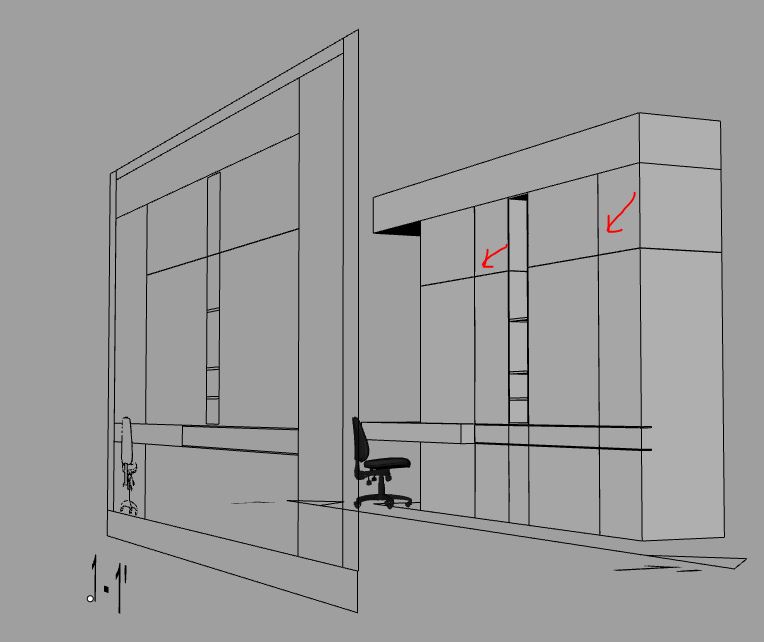

VisualARQ sections tries to “clean” output by removing tangent edges inside objects. In this particular case, the problem is that the groove width is 1 mm, and as the document tolerance is also 1 mm, VisualARQ will remove this edges, as they are considered the same edge.

You can however fix this very easily: you can override tolerance for the section view to 0.1 mm, so the edges will keep visible:

NOTE: Take into account that “Tolerance factor” is a factor that will be multiplied by the tolerance, not an actual tolerance.

Regards,

Enric

2 Likes

thanks ))
