Slab and wall Merge/Tumor

VisualARQ
, ,
1

Hello,

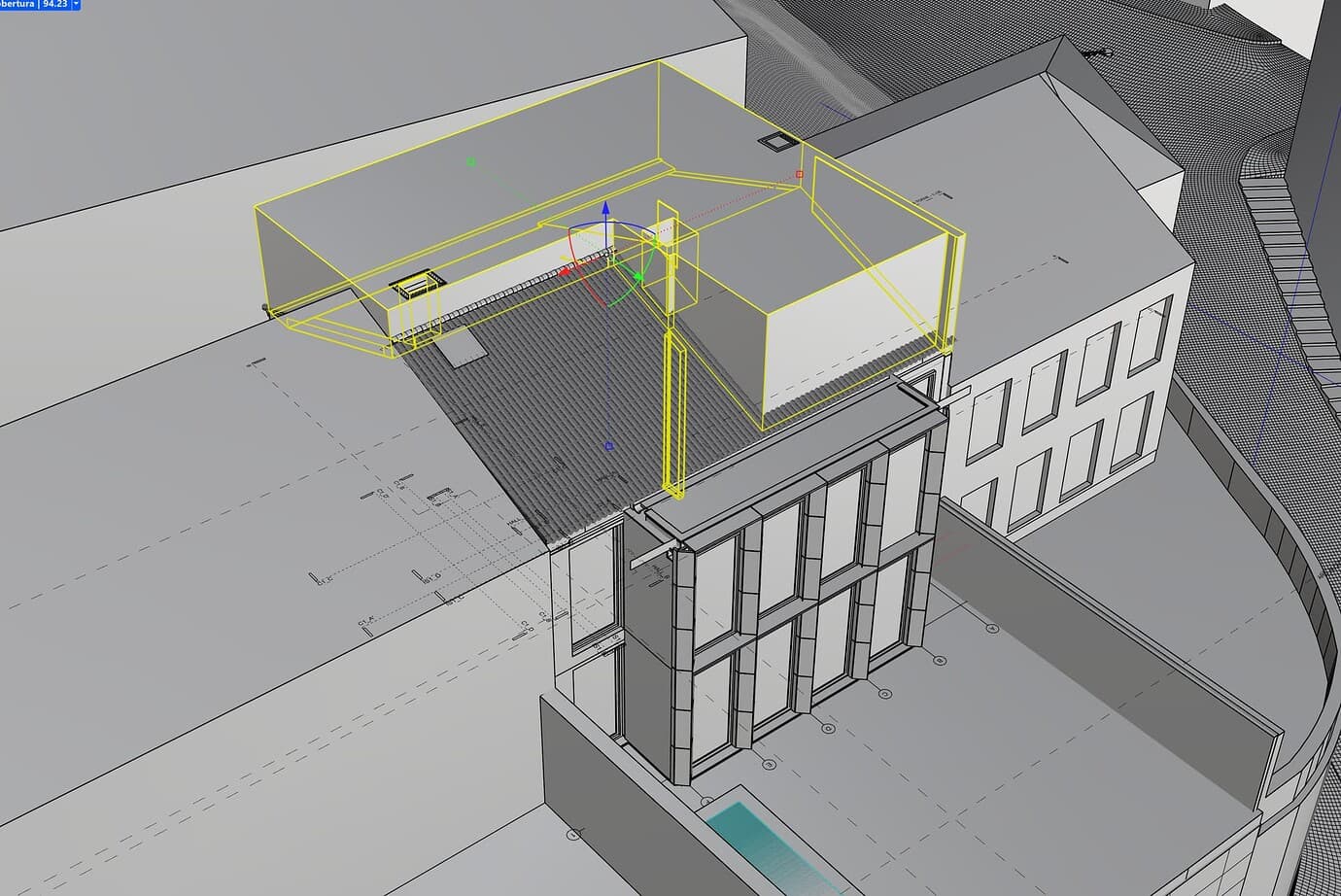

Heaving a bug when a VA object is edited on the file, slab and walls merge together to form a massive object, sometime it can be a component thickness or a wall “Extend” “Top”.

Or sometimes they don’t merge but create these odd tumors…

3D file:

image1920×1481 245 KB

image1380×922 142 KB

System Info:
Windows 11 (10.0.26100 SR0.0) or greater (Physical RAM: 16GB)
.NET 7.0.0

Computer platform: DESKTOP

Standard graphics configuration.
Primary display and OpenGL: NVIDIA GeForce RTX 3060 (NVidia) Memory: 12GB, Driver date: 4-12-2025 (M-D-Y). OpenGL Ver: 4.6.0 NVIDIA 576.02

Accelerated graphics device with 4 adapter port(s)

  • Windows Main Display attached to adapter port 0

OpenGL Settings
Safe mode: Off
Use accelerated hardware modes: On
GPU Tessellation is: On
Redraw scene when viewports are exposed: On
Graphics level being used: OpenGL 4.6 (primary GPU’s maximum)

Anti-alias mode: 4x
Mip Map Filtering: Linear
Anisotropic Filtering Mode: High

Vendor Name: NVIDIA Corporation
Render version: 4.6
Shading Language: 4.60 NVIDIA
Driver Date: 4-12-2025
Driver Version: 32.0.15.7602
Maximum Texture size: 32768 x 32768
Z-Buffer depth: 24 bits
Maximum Viewport size: 32768 x 32768
Total Video Memory: 12 GB

Rhino plugins that do not ship with Rhino
C:\Program Files\Rhino 8\Plug-ins\Tibidabo\VisualARQ.rhp “VisualARQ”
C:\Program Files\Rhino 8\Plug-ins\Tibidabo\Tibidabo.rhp “Tibidabo”

Rhino plugins that ship with Rhino
C:\Program Files\Rhino 8\Plug-ins\Commands.rhp “Commands” 8.18.25100.11001
C:\Program Files\Rhino 8\Plug-ins\WebBrowser.rhp “WebBrowser”
C:\Program Files\Rhino 8\Plug-ins\rdk.rhp “Renderer Development Kit”
C:\Program Files\Rhino 8\Plug-ins\RhinoScript.rhp “RhinoScript”
C:\Program Files\Rhino 8\Plug-ins\IdleProcessor.rhp “IdleProcessor”
C:\Program Files\Rhino 8\Plug-ins\RhinoRenderCycles.rhp “Rhino Render” 8.18.25100.11001
C:\Program Files\Rhino 8\Plug-ins\RhinoRender.rhp “Legacy Rhino Render”
C:\Program Files\Rhino 8\Plug-ins\rdk_etoui.rhp “RDK_EtoUI” 8.18.25100.11001
C:\Program Files\Rhino 8\Plug-ins\NamedSnapshots.rhp “Snapshots”
C:\Program Files\Rhino 8\Plug-ins\MeshCommands.rhp “MeshCommands” 8.18.25100.11001
C:\Program Files\Rhino 8\Plug-ins\IronPython\RhinoDLR_Python.rhp “IronPython” 8.18.25100.11001
C:\Program Files\Rhino 8\Plug-ins\RhinoCycles.rhp “RhinoCycles” 8.18.25100.11001
C:\Program Files\Rhino 8\Plug-ins\Grasshopper\GrasshopperPlugin.rhp “Grasshopper” 8.18.25100.11001
C:\Program Files\Rhino 8\System\netcore\export_PDF.rhp “PDF Export” 8.18.25100.11001
C:\Program Files\Rhino 8\Plug-ins\Toolbars\Toolbars.rhp “Toolbars” 8.18.25100.11001
C:\Program Files\Rhino 8\Plug-ins\3dxrhino.rhp “3Dconnexion 3D Mouse”
C:\Program Files\Rhino 8\Plug-ins\BlockEdit.rhp “BlockEdit” 8.18.25100.11001
C:\Program Files\Rhino 8\Plug-ins\Displacement.rhp “Displacement”
C:\Program Files\Rhino 8\Plug-ins\SectionTools.rhp “SectionTools”

2

Hi @lourencovp I can see there is some intersection problem between a slab and another object, which is causing that wrong generation of the slab geometry. I’ll get back to you when we know what’s happening and fix the error.
