Organic shaped balconies, difficult question

Grasshopper
,
1

I’m working on designing balconies and want the planter to rise from the balcony floor instead of maintaining a constant height. My original design was easily created using a Sweep 1, but my current vision is more complex and challenging to model. I need help creating a smooth, flowing transition with fillets from the balcony floor to the planter. I’ve included a sketch to illustrate my idea. Can anyone assist with this?

Sweep
Sweep1499×803 96.7 KB

Balcony
Balcony1375×892 389 KB

Balcony model_1.3dm (13.6 MB)
250124_Grashopperscript_Balconies_autosave.gh (126.4 KB)

2

Can you sweep along the red line and use that to cut your planter?

SWEEP
SWEEP690×447 165 KB

3

That would be possible, only the red line doesn’t exist yet and it’s going in two dimensions. (So no straight line) and I don’t know how to pull it so it gets the wanted curve.

4

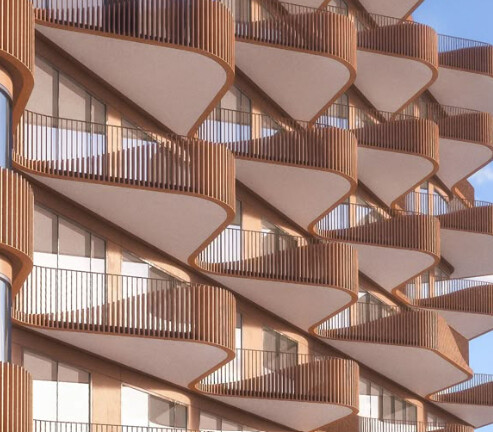

To clarify, so you can create an effect where the balconies is also going up and down. (as seen in the reference)

image493×432 74.2 KB

5

Those balconies are only going out and in.
