Mesh representation in viewport

Rhino Rhino for Windows
1

Hello everyone, I would like to ask if there is any way to reproduce the mesh outline representation from the Technical display mode in the Rendered or Shaded display modes.

The current way meshes are displayed in render/shaded, with all those visible wires, looks really bad. It would be much better if Rhino could use the cleaner technical-style outlines to represent mesh edges in other display modes as well.

Is there any setting, workaround, or custom display mode that can achieve this?

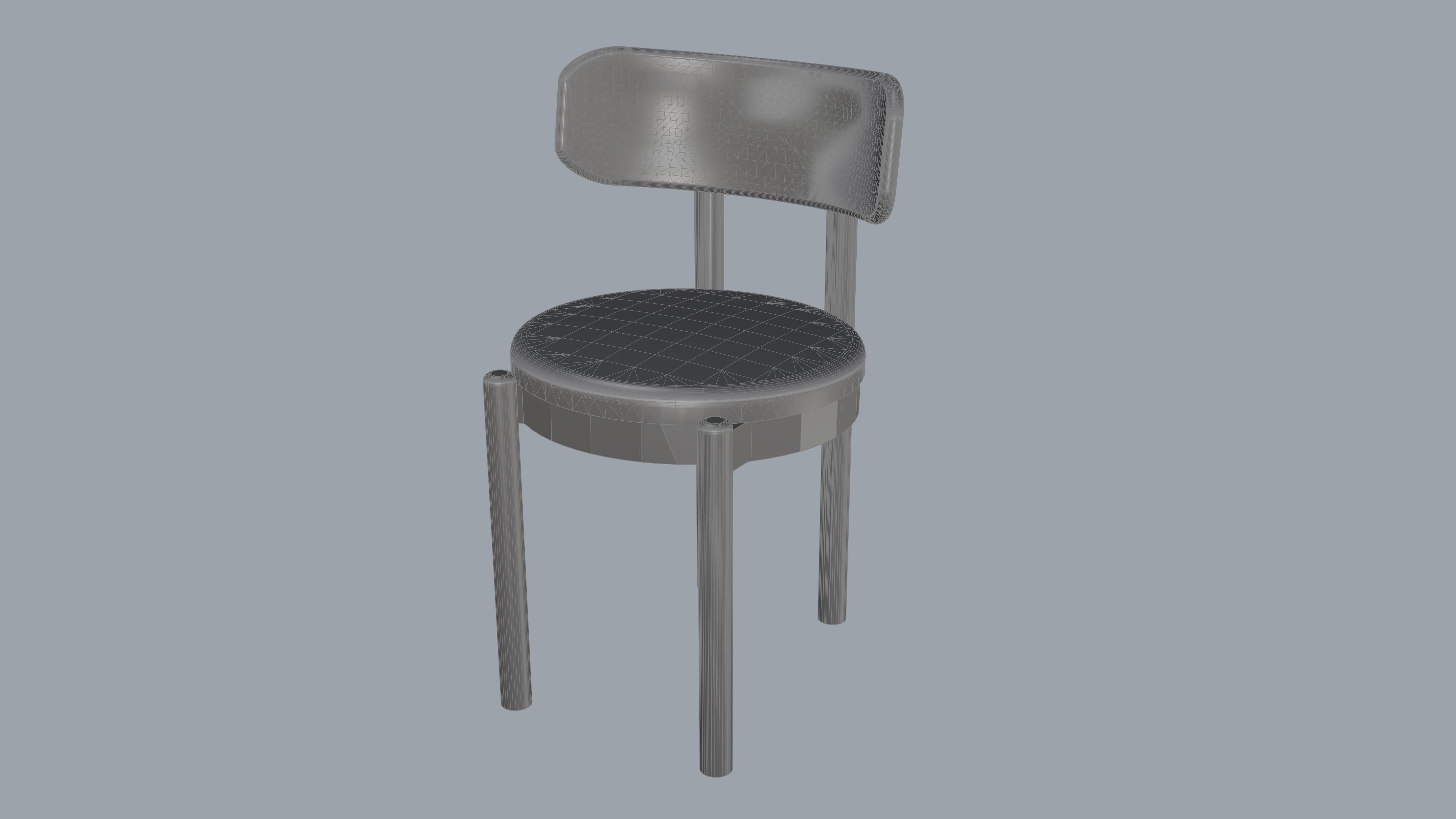

ViewCapture20260522_142140
ViewCapture20260522_1421405760×3240 146 KB

ViewCapture20260522_142119
ViewCapture20260522_1421195760×3240 304 KB

2

Hi, @Leo13!
I made a custom display mode using an .ini file, based on the Technical display mode.

Clean_Mesh.ini (15.6 KB)

It removes most of the distracting mesh wires and provides a much cleaner appearance.

Maybe it could help you :slight_smile:

-Robert

3

Here are a few examples of how it looks:

image1351×1580 157 KB

Here is the original Shaded display mode:

image1413×1604 228 KB

4

Autodesk Alias style :slight_smile:

5

For display modes such as Shaded and Rendered you can turn off mesh wire display.
Options > View > Display Modes > [display mode name] > Visibility
Uncheck “Show mesh wires”

image1146×1293 95.4 KB

6

Yeah, but I want the silhouette, not to hide all mesh wires.

7

Works like a charm! How did you did this?

8

It’s done roughly like this:

instruction_english.txt (1.2 KB)
