Make 2D & clipping Plane

[2DCube]

When looking at the clipping plane the model shows a rendered view rather than shaded view?

Also, when using a clipping plane and make 2D the result shows faces but not capped solids as it shows within the viewport:

Andy

[John_Brock]

@GregArden
Is this on your YouTrack list?

[GregArden]

Yes, Its toward the top of the desired features list.

[jeffoulet]

Hi, sorry to revive this fossil thread, but… what the stand on that feature?
It seems that Make2D still handle some edges as ‘Visible’ even if they’re behind the clipping plane…

[John_Brock]

I do not see the clipping plane graphic in your screenshot.
Please post a file with that geometry.

It’s working as expected here:

Make2D and ClipPlane.3dm (76.3 KB)

[jeffoulet]

Here you go: test_clippingplane.3dm (99.2 KB)

[jeffoulet]

And system info:

Rhino 6 SR18 2019-9-10 (Rhino 6, 6.18.19253.10261, Git hash:master @ 1dbe29bf1545c65abce614153c67ceea87262a12)
License type: Commercial, build 2019-09-10
License details: LAN Zoo Network Node

Windows 10.0 SR0.0 or greater (Physical RAM: 32Gb)
Machine name: HESWS29

Non-hybrid graphics.
Primary display and OpenGL: NVIDIA Quadro P2000 (NVidia) Memory: 5GB, Driver date: 7-24-2019 (M-D-Y). OpenGL Ver: 4.6.0 NVIDIA 431.70

OpenGL Settings
Safe mode: Off
Use accelerated hardware modes: On
Redraw scene when viewports are exposed: On

Anti-alias mode: 8x
Mip Map Filtering: Linear
Anisotropic Filtering Mode: Height

Vendor Name: NVIDIA Corporation
Render version: 4.6
Shading Language: 4.60 NVIDIA
Driver Date: 7-24-2019
Driver Version: 26.21.14.3170
Maximum Texture size: 32768 x 32768
Z-Buffer depth: 24 bits
Maximum Viewport size: 32768 x 32768
Total Video Memory: 5 GB

Rhino plugins
C:\Program Files\Rhino 6\Plug-ins\Commands.rhp “Commands” 6.18.19253.10261
C:\Program Files\Rhino 6\Plug-ins\rdk.rhp “Renderer Development Kit”
C:\Users.…\AppData\Roaming\McNeel\Rhinoceros\6.0\Plug-ins\Iris (1cd9c8f5-c901-426c-8e80-d6a2e2b18bba)\1.0.6911.20081\Iris.WinR6.rhp “Iris” 1.0.0.0
C:\Program Files\Rhino 6\Plug-ins\RPC.rhp “RPC”
C:\Program Files\Rhino 6\Plug-ins\RhinoBonusTools.rhp “Rhino Bonus Tools”
C:\Users.…\AppData\Roaming\McNeel\Rhinoceros\6.0\Plug-ins\ClippingBox (4dfff1df-5f09-43ae-a044-77b115244b02)\1.0.0.0\Rhino 6\ClippingBox.rhp “ClippingBox” 1.0.0.0
C:\Program Files\Rhino 6\Plug-ins\RhinoRender.rhp “Rhino Render”
C:\Program Files\Rhino 6\Plug-ins\rdk_etoui.rhp “RDK_EtoUI” 6.18.19253.10261
C:\Program Files\Rhino 6\Plug-ins\rdk_ui.rhp “Renderer Development Kit UI”
C:\Program Files\Rhino 6\Plug-ins\NamedSnapshots.rhp “Snapshots”
C:\Program Files\cadwork.dir\EXE_25\3d.x64\Rhino Plugins\CadworkTools.rhp “CadworkTools” 1.1.0.0
C:\Program Files\Rhino 6\Plug-ins\RhinoCycles.rhp “RhinoCycles” 6.18.19253.10261
C:\Program Files\Rhino 6\Plug-ins\Toolbars\Toolbars.rhp “Toolbars” 6.18.19253.10261
C:\Program Files\Rhino 6\Plug-ins\3dxrhino.rhp “3Dconnexion 3D Mouse”
C:\Program Files\Rhino 6\Plug-ins\Displacement.rhp “Displacement”
C:\Users.…\Downloads\SectionTools.rhp “SectionTools”
C:\Program Files\Rhino 6\Plug-ins\NamedPositions.rhp “Named Position”

[John_Brock]

It working fine here.
If I move the clipping plane to clip off more of your box and run Make2D, I get a shorter 2D result:

[jeffoulet]

Ok, but in yours, the ‘inner’ edges appear to be on the ‘hidden’ layer, like if the clipped surface was filled (like cutting a real solid):

This is also the behaviour I’m looking for.

In my model, the inner edges are treated as ‘visible’ (like cutting a hull):

[jeffoulet]

I get the same output with your file:

Edges viewed through the clipping plane are considered as visible.

[John_Brock]

Your linetype scale setting is too small.
In Options > Linetype, change the line type scale to 200 or higher.
Your lines are using the Hidden pattern but your scale is so small you can’t see them.

[jeffoulet]

Humm, not sure it has to deal with linetype, please see here, the selectionned segment is really on the ‘visible’ parent layer:

[John_Brock]

The Hidden linetype pattern is defined as a line 2mm long followed by a gap 2mm long.
Your linetype scale was set to 1.0
The section of hidden line is 15761.85 millimeters long.
Divide that length by 2 and you still have a lot of tiny little dashes you can’t see on your monitor.
Change the LT scale please

[jeffoulet]

I increased the LT scale and I now see dashed lines. Unfortunately it was not my problem. I think there’s misunderstanding in the air

1 - what I get out of Make2D: inner edges are on the ‘Visible::*’ layers

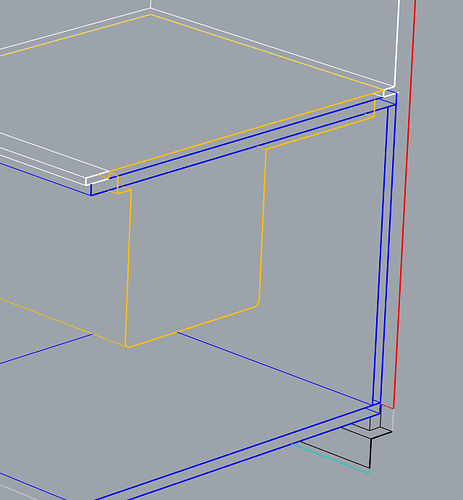

2 - what I want: all inners edges occulted by the clipping plane to be on the hidden layers:

[John_Brock]

If you uncheck the Hidden lines option in Make 2D, the the visible surfaces will occlude the surface edges and curves behind them.

[jeffoulet]

3 - the result with unchecked ‘hidden lines’ by Make2D, still hollow representation:

[John_Brock]

It looks like your Clipping Plane is slicing off the front face of the box in 1 and 3 so you can see the insides.
2 looks wrong to me.

[jeffoulet]

But 2 is exactly what you get in your example:

[John_Brock]

I had my Perspective view rotated around so the clipped off surface is on the back, away from the current view.

[jeffoulet]

OK, that’s an explanation. So I understand that the original wish of this thread (capped solids while performing Make2D sliced by a clipping plane) have not been implemented yet.
