Hello,
While this may not really be a bug it feels like one to me and I’d like the devs opinion.
The Drafting Attributes component excepts a Linetype input and a Linetype Scale input.
Currently if I use a linetype called P_Dash plugged into the Custom Curve Preview component it works as expected with the proper Model Scaling applied in the Document Properties.
However, if I connect this same linetype to the Drafting Attributes component, this scale information does not carry though and the component ignores the “Global” Model Scale and Linetype Scales applied within the Document Properties.
I need to add some arbitrary number like 400 to the Linetype Scale input of the Drafting Attributes component to get it to look “right”
While I love having the ability to override the Scaling within this component, in my opinion, by default it should be reading the Model Space Linetype Scaling value from the Document Properties:
Model Space (Baked lines of type P_Dash (incorrect scaling)) (B):
Model Space (Baked lines of type P_Dash (incorrect scaling with scale of 400 applied to compensate)) (B):
Model Space (Custom Curve Preview of P_Dash (correct scaling)) (A):

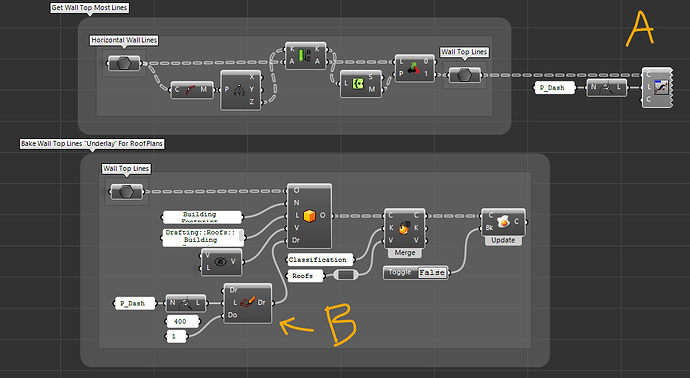

Graph Space:
Thank you all!
